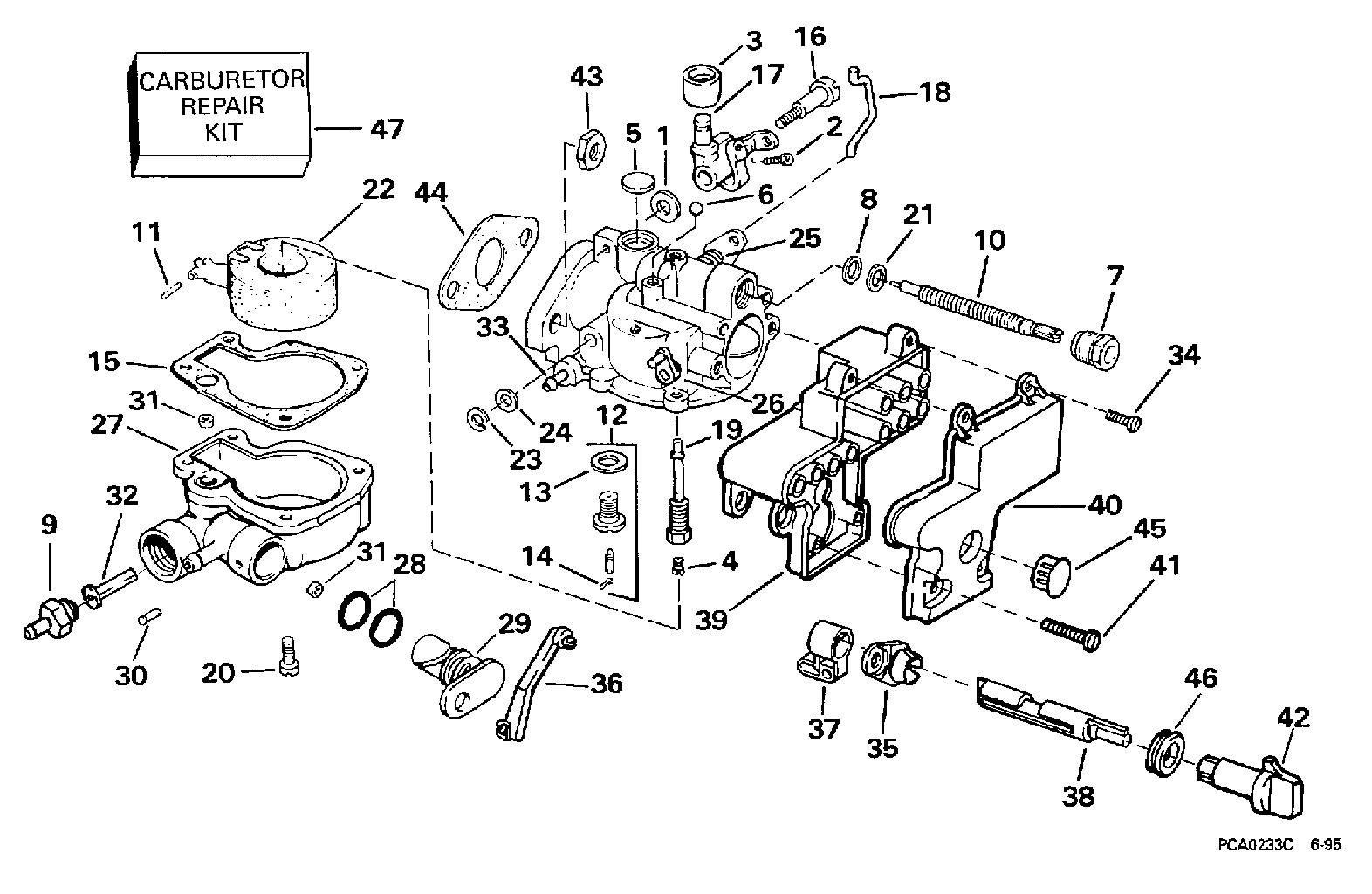

Карбюратор в сборе.. Not Shown 3R Models Only (CARBURETOR ASSY.. Not Shown 3R Models Only)

Карбюратор в сборе.. Not Shown 4RE, 4RL Models Only (CARBURETOR ASSY.. Not Shown 4RE, 4RL Models Only)

Карбюратор в сборе.. Not Shown 4BR Models Only (CARBURETOR ASSY.. Not Shown 4BR Models Only)

Шайба (WASHER)

   (последний код) WASHER

Винт, Cam folнижний (SCREW, Cam follower)

   (последний код) SCREW

Ролик колпачка folнижний (ROLLER, Cam follower)

ORIFICE, № 33. 3R Models Only (ORIFICE, No. 33. 3R Models Only)

ORIFICE, № 35. 4RE, 4RL Models Only 4BR Models Only (ORIFICE, No. 35. 4RE, 4RL Models Only 4BR Models Only)

Заглушка, Expansion (PLUG, Expansion)

LEAD SHOT (LEAD SHOT)

PKG. Гайка, Adj. Игольчатый клапанs (PKG. NUT, Adj. needle valves)

Прокладка клапана. Also included in kit 398451 (PACKING, Valve. Also included in kit 398451)

Ниппель, Поплавковая камера. 3R Models Only 4BR Models Only (NIPPLE, Float chamber. 3R Models Only 4BR Models Only)

Игольчатый клапан, Slow speed (NEEDLE VALVE, Slow speed)

   (последний код) NEEDLE-VALVE

HINGE Стопор рычага поплавка. Also included in kit 398451 (HINGE PIN, Float arm. Also included in kit 398451)

Клапан поплавка. Also included in kit 398451 (FLOAT VALVE. Also included in kit 398451)

   (последний код) FLOAT-VALVE

Прокладка. Also included in kit 398451 (GASKET. Also included in kit 398451)

Пружина Зажим. Also included in kit 398451 (SPRING CLIP. Also included in kit 398451)

   (последний код) CLIP

Прокладка. Also included in kit 398451 (GASKET. Also included in kit 398451)

   (последний код) GASKET

Прокладка. Also included in kit 398451 (GASKET. Also included in kit 398451)

   (последний код) GASKET

SHOULDER Винт (SHOULDER SCREW)

CAM FOLнижний (CAM FOLLOWER)

Соединитель, Cam folнижний (LINK, Cam follower)

   (последний код) LINK

NOZZLE, High speed (NOZZLE, High speed)

Винт, Поплавковая камера. 3R Models Only 4BR Models Only (SCREW, Float chamber. 3R Models Only 4BR Models Only)

Винт, Поплавковая камера. 4RE, 4RL Models Only (SCREW, Float chamber. 4RE, 4RL Models Only)

Шайба, Прокладка. Also included in kit 398451 (WASHER, Packing. Also included in kit 398451)

Поплавок в сборе.. Also included in kit 398451 (FLOAT ASSY.. Also included in kit 398451)

   (последний код) FLOAT&ARM AY

Фиксатор, Вал дросселя (RETAINER, Throttle shaft)

   (последний код) IDENTICAL 203949

Шайба, Вал дросселя (WASHER, Throttle shaft)

   (последний код) WASHER

Пружина, Дроссель return (SPRING, Throttle return)

Рычаг заслонки Вал (LEVER, Choke shaft)

Поплавковая камера в сборе.. 3R Models Only 4BR Models Only (FLOAT CHAMBER ASSY.. 3R Models Only 4BR Models Only)

   (последний код) FLOAT-BOWL

Поплавковая камера в сборе.. 4RE, 4RL Models Only (FLOAT CHAMBER ASSY.. 4RE, 4RL Models Only)

   (последний код) FLOAT CHAMBER

Уплотнительное кольцо, Клапан. Also included in kit 398451 (O-RING, Valve. Also included in kit 398451)

SHUT-OFF Клапан. 3R Models Only 4BR Models Only (SHUT-OFF VALVE. 3R Models Only 4BR Models Only)

ROLL Штифт, Shut-off Клапан. Also included in kit 398451 (ROLL PIN, Shut-off valve. Also included in kit 398451)

Обратный клапан. 3R Models Only 4BR Models Only (CHECK VALVE. 3R Models Only 4BR Models Only)

BLADDER. 3R Models Only 4BR Models Only (BLADDER. 3R Models Only 4BR Models Only)

Ниппель, Fuel вход. 4RE, 4RL Models Only 4BR Models Only (NIPPLE, Fuel inlet. 4RE, 4RL Models Only 4BR Models Only)

Винт, Крышка to Основание (SCREW, Cover to base)

   (последний код) SCREW

Рычаг заслонки Ручка (LEVER, Choke knob)

Соединитель, Рычаг to Клапан. 3R Models Only 4BR Models Only (LINK, Lever to valve. 3R Models Only 4BR Models Only)

   (последний код) LINK

Соединитель, Choke Рычаг (LINK, Choke lever)

Вал, Choke & fuel shut-off (SHAFT, Choke & fuel shut-off)

Основание, Air Глушитель (BASE, Air silencer)

AIR Глушитель (AIR SILENCER)

Винт, Глушитель to Карбюратор (SCREW, Silencer to carburetor)

Регулятор дросселя (KNOB, Choke)

   (последний код) KNOB-CHOKE

Гайка, Карбюратор Шпилька (NUT, Carburetor stud)

   (последний код) NUT

Прокладка. Also included in kit 398451 (GASKET. Also included in kit 398451)

Заглушка, Air Корпус глушителя (PLUG, Air silencer cover)

Пыльник ручки заслонки (GROMMET, Choke knob)

Ремкомплект карбюратора. 3R Models Only 4BR Models Only (CARBURETOR REPAIR KIT. 3R Models Only 4BR Models Only)

   (последний код) KIT AY,CARB REPAIR

Ремкомплект карбюратора. 4RE, 4RL Models Only (CARBURETOR REPAIR KIT. 4RE, 4RL Models Only)

   (последний код) KIT AY,CARB REPAIR
