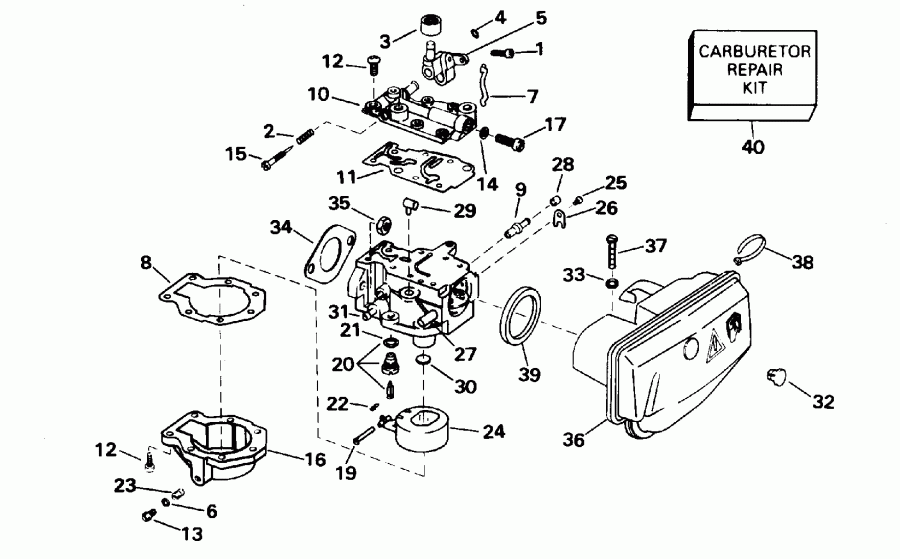

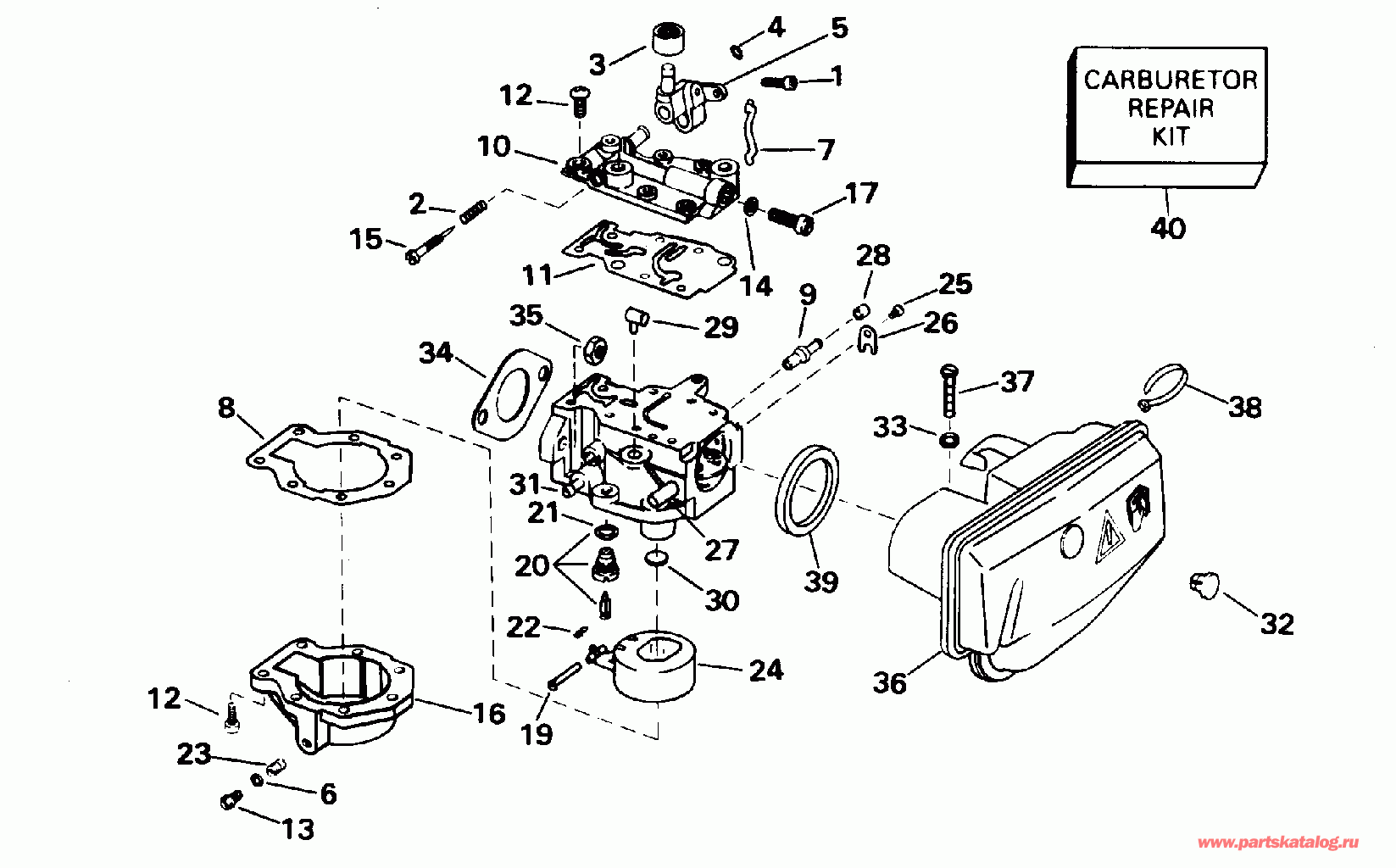

Карбюратор в сборе.. Not Shown 9.9 & SEL Models Only (CARBURETOR ASSY.. Not Shown 9.9 & SEL Models Only)

   (последний код) CARBURETOR AY

Карбюратор в сборе.. Not Shown 15 Шнур & TE, "S" Suffix Models Only (CARBURETOR ASSY.. Not Shown 15 Rope & TE, "S" Suffix Models Only)

Карбюратор в сборе.. Not Shown 15REL, "S" Suffix Models Only (CARBURETOR ASSY.. Not Shown 15REL, "S" Suffix Models Only)

Карбюратор в сборе.. Not Shown 10REL (CARBURETOR ASSY.. Not Shown 10REL)

   (последний код) CARBURETOR AY

Карбюратор в сборе.. Not Shown 15 Шнур & TE, "G" Suffix Models Only (CARBURETOR ASSY.. Not Shown 15 Rope & TE, "G" Suffix Models Only)

   (последний код) CARB AY,15HP ROPE

Карбюратор в сборе.. Not Shown 15REL, "G" Suffix Models Only (CARBURETOR ASSY.. Not Shown 15REL, "G" Suffix Models Only)

   (последний код) CARB AY,15HP REMOT

Винт, Adjustment (SCREW, Adjustment)

   (последний код) SCREW

Пружина, Игольчатый клапан (SPRING, Needle valve)

Ролик (ROLLER)

Уплотнительное кольцо, Cam folнижний (O-RING, Cam follower)

   (последний код) O-RING

Рычаг (LEVER)

Шайба, Винт Заглушка (WASHER, Screw plug)

Соединитель, Folнижний (LINK, Follower)

Прокладка, Bowl. Also included in kit 436359 (GASKET, Bowl. Also included in kit 436359)

   (последний код) GASKET

Ниппель, Primer (NIPPLE, Primer)

Крышка, Карбюратор Корпус (COVER, Carburetor body)

Прокладка крышки. Also included in kit 436359 (GASKET, Cover. Also included in kit 436359)

   (последний код) GASKET,CARB.

Прокладка крышки. 15 Шнур & TE, "S" Suffix Models Only 15REL, "S" Suffix Models Only (GASKET, Cover. 15 Rope & TE, "S" Suffix Models Only 15REL, "S" Suffix Models Only)

Винт, Поплавковая камера & Крышка (SCREW, Float chamber & cover)

Винт заглушки (SCREW, Plug)

Шайба, Idle passage. Also included in kit 436359 (WASHER, Idle passage. Also included in kit 436359)

Игольчатый клапан, Slow speed (NEEDLE VALVE, Slow speed)

Поплавковая камера (FLOAT CHAMBER)

Винт Заглушка, Idle passage (SCREW PLUG, Idle passage)

HINGE Стопор поплавка. Also included in kit 436359 (HINGE PIN, Float. Also included in kit 436359)

Клапан поплавка & Седло в сборе.. Also included in kit 436359 (FLOAT VALVE & SEAT ASSY.. Also included in kit 436359)

   (последний код) FLOAT-VALVE

Шайба. Also included in kit 436359 (WASHER. Also included in kit 436359)

Пружина Зажим. Also included in kit 436359 (SPRING CLIP. Also included in kit 436359)

   (последний код) CLIP

HIGH SPEED ORIFICE, № 36. 9.9 & SEL Models Only 10REL (HIGH SPEED ORIFICE, No. 36. 9.9 & SEL Models Only 10REL)

HIGH SPEED ORIFICE, № 40. 15 Шнур & TE, "S" Suffix Models Only 15REL, "S" Suffix Models Only (HIGH SPEED ORIFICE, No. 40. 15 Rope & TE, "S" Suffix Models Only 15REL, "S" Suffix Models Only)

HIGH SPEED ORIFICE, № 48. 15 Шнур & TE, "G" Suffix Models Only 15REL, "G" Suffix Models Only (HIGH SPEED ORIFICE, No. 48. 15 Rope & TE, "G" Suffix Models Only 15REL, "G" Suffix Models Only)

Поплавок в сборе.. Also included in kit 436359 (FLOAT ASSY.. Also included in kit 436359)

   (последний код) FLOAT&ARM AY

Винт. 9.9 & SEL Models Only 15 Шнур & TE, "S" Suffix Models Only 15 Шнур & TE, "G" Suffix Models Only (SCREW. 9.9 & SEL Models Only 15 Rope & TE, "S" Suffix Models Only 15 Rope & TE, "G" Suffix Models Only)

Зажим. 9.9 & SEL Models Only 15 Шнур & TE, "S" Suffix Models Only 15 Шнур & TE, "G" Suffix Models Only (CLIP. 9.9 & SEL Models Only 15 Rope & TE, "S" Suffix Models Only 15 Rope & TE, "G" Suffix Models Only)

   (последний код) CLIP

Штифт, Choke Рычаг. 9.9 & SEL Models Only 15 Шнур & TE, "S" Suffix Models Only 15 Шнур & TE, "G" Suffix Models Only (PIN, Choke lever. 9.9 & SEL Models Only 15 Rope & TE, "S" Suffix Models Only 15 Rope & TE, "G" Suffix Models Only)

   (последний код) PIN

Колпачок, Primer Ниппель. 9.9 & SEL Models Only 15 Шнур & TE, "S" Suffix Models Only 15 Шнур & TE, "G" Suffix Models Only (CAP, Primer nipple. 9.9 & SEL Models Only 15 Rope & TE, "S" Suffix Models Only 15 Rope & TE, "G" Suffix Models Only)

Колпачок, Рестриктор (CAP, Restrictor)

Заглушка, Nozzle well (PLUG, Nozzle well)

FITTING, Fuel вход (FITTING, Fuel inlet)

Заглушка, Air Глушитель (PLUG, Air silencer)

Шайба, Винт (WASHER, Screw)

   (последний код) WASHER

Прокладка. Also included in kit 436359 (GASKET. Also included in kit 436359)

Гайка, Карбюратор Креплениеing (NUT, Carburetor mounting)

   (последний код) NUT

AIR Глушитель (AIR SILENCER)

   (последний код) SILENCER,AIR

Воздушный винт Глушитель (SCREW, Air silencer)

Крепёжный хомут, Тросик дросселя (TIE STRAP, Throttle cable)

   (последний код) TIE-STRAP

Сальник, Air Глушитель to Карбюратор (SEAL, Air silencer to carburetor)

Ремкомплект карбюратора. 9.9 & SEL Models Only 10REL 15 Шнур & TE, "G" Suffix Models Only 15REL, "G" Suffix ModelsOnly (CARBURETOR REPAIR KIT. 9.9 & SEL Models Only 10REL 15 Rope & TE, "G" Suffix Models Only 15REL, "G" Suffix ModelsOnly)

   (последний код) KIT AY,CARB REPAIR

Ремкомплект карбюратора. 15 Шнур & TE, "S" Suffix Models Only 15REL, "S" Suffix Models Only (CARBURETOR REPAIR KIT. 15 Rope & TE, "S" Suffix Models Only 15REL, "S" Suffix Models Only)

   (последний код) KIT AY,CARB REPAIR
