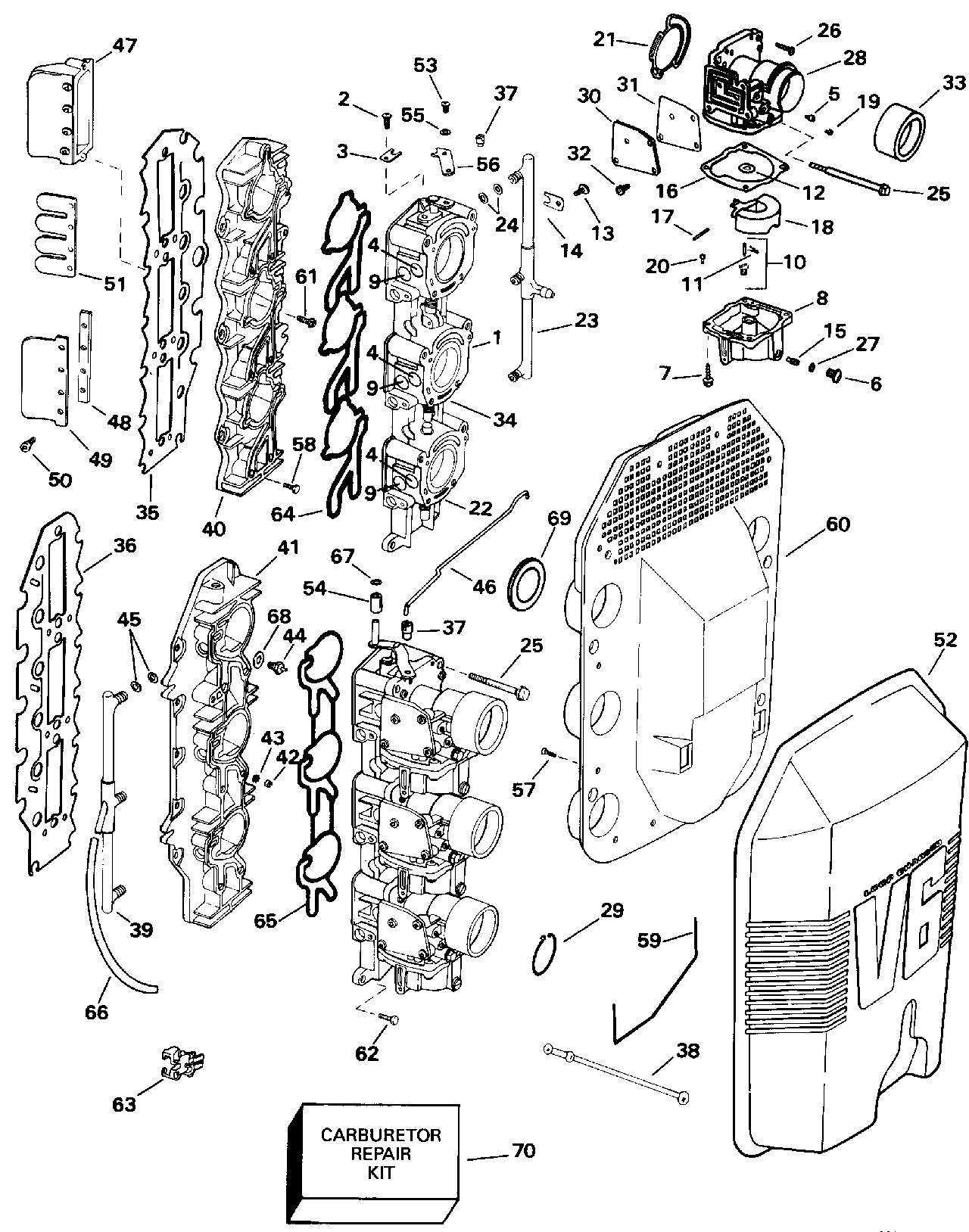

CARB. в сборе., Stbd, 150. Not Shown Early PТягаuction with 433342 or 433343 Stamped on Карбюратор. These Assemblies и Related Parts Must Be Used Together. (CARB. ASSY., Stbd, 150. Not Shown Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Together.)

   (последний код) CARBURETOR AY

CARB. в сборе., Port, 150. Not Shown Early PТягаuction with 433342 or 433343 Stamped on Карбюратор. These Assemblies и Related Parts Must Be Used Together. (CARB. ASSY., Port, 150. Not Shown Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Together.)

   (последний код) CARBURETOR AY

CARB в сборе., Stbd. 150. Not Shown Late PТягаuction with 435528 or 435529 Stamped On Карбюратор. These Assemblies и Related Parts Must Be Used Together. (CARB ASSY., Stbd. 150. Not Shown Late Production with 435528 or 435529 Stamped On Carburetor. These Assemblies and Related Parts Must Be Used Together.)

   (последний код) CARBURETOR AY

CARB в сборе., Port, 150. Not Shown Late PТягаuction with 435528 or 435529 Stamped On Карбюратор. These Assemblies и Related Parts Must Be Used Together. (CARB ASSY., Port, 150. Not Shown Late Production with 435528 or 435529 Stamped On Carburetor. These Assemblies and Related Parts Must Be Used Together.)

   (последний код) CARBURETOR AY

CARB в сборе., Stbd., 150 XP, GT. Not Shown (CARB ASSY., Stbd., 150 XP, GT. Not Shown)

   (последний код) CARBURETOR AY

CARB в сборе., Port., 150 XP, GT. Not Shown (CARB ASSY., Port., 150 XP, GT. Not Shown)

CARB, в сборе., Stbd., 175. Not Shown (CARB, ASSY., Stbd., 175. Not Shown)

CARB, в сборе., Port, 175. Not Shown (CARB, ASSY., Port, 175. Not Shown)

Дроссель газа AY., Stbd, 150. Early PТягаuction with 433342 or 433343 Stamped on Карбюратор. These Assemblies и Related Parts Must Be Used Together. (THROTTLE BODY AY., Stbd, 150. Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Together.)

   (последний код) BODY AY,THROTTL

Дроссель газа AY., Port, 150. Early PТягаuction with 433342 or 433343 Stamped on Карбюратор. These Assemblies и Related Parts Must Be Used Together. (THROTTLE BODY AY., Port, 150. Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Together.)

   (последний код) BODY AY,THROTTL

Дроссель газа AY., Stbd. 150. Late PТягаuction with 435528 or 435529 Stamped On Карбюратор. These Assemblies и Related Parts Must Be Used Together. (THROTTLE BODY AY., Stbd. 150. Late Production with 435528 or 435529 Stamped On Carburetor. These Assemblies and Related Parts Must Be Used Together.)

   (последний код) BODY AY,THROTTLE

Дроссель газа AY., Port. 150. Late PТягаuction with 435528 or 435529 Stamped On Карбюратор. These Assemblies и Related Parts Must Be Used Together. (THROTTLE BODY AY., Port. 150. Late Production with 435528 or 435529 Stamped On Carburetor. These Assemblies and Related Parts Must Be Used Together.)

   (последний код) BODY AY,THROTTLE

Дроссель газа AY., Stbd, 150 XP, GT, 175 (THROTTLE BODY AY., Stbd, 150 XP, GT, 175)

   (последний код) BODY AY,THROTTL

Дроссель газа AY., Port, 150 XP, GT, 175 (THROTTLE BODY AY., Port, 150 XP, GT, 175)

Винт, Вал (SCREW, Shaft)

   (последний код) SCREW

Зажим (CLIP)

CORE Заглушка (CORE PLUG)

ORIFICE, #28, 150 XP, GT (ORIFICE, #28, 150 XP, GT)

ORIFICE, #47, 150. Early PТягаuction with 433342 or 433343 Stamped on Карбюратор. These Assemblies и Related Parts Must Be Used Together. (ORIFICE, #47, 150. Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Together.)

ORIFICE, #39, 150. Late PТягаuction with 435528 or 435529 Stamped On Карбюратор. These Assemblies и Related Parts Must Be Used Together. (ORIFICE, #39, 150. Late Production with 435528 or 435529 Stamped On Carburetor. These Assemblies and Related Parts Must Be Used Together.)

ORIFICE, #30, 175 (ORIFICE, #30, 175)

Винт. Заглушка (SCREW. Plug)

Винт, Bowl to Корпус (SCREW, Bowl to body)

   (последний код) SCREW

Поплавковая камера в сборе. (FLOAT CHAMBER ASSY.)

Заглушка, Expansion , 150. Late PТягаuction with 435528 or 435529 Stamped On Карбюратор. These Assemblies и Related Parts Must Be Used Together. (PLUG, Expansion , 150. Late Production with 435528 or 435529 Stamped On Carburetor. These Assemblies and Related Parts Must Be Used Together.)

Клапан поплавка в сборе. (FLOAT VALVE ASSY.)

   (последний код) FLOAT-VALVE

Пружина Зажим (SPRING CLIP)

   (последний код) CLIP

Прокладка, Nozzle well (GASKET, Nozzle well)

   (последний код) GASKET, CARB

Винт, Зажим, Коллектор (SCREW, Clip, manifold)

   (последний код) SCREW

Зажим, Коллектор to Дроссель газа (CLIP, Manifold to throttle body)

   (последний код) CLIP

ORIFICE, High speed, #57D, 150 (ORIFICE, High speed, #57D, 150)

   (последний код) PLUG

ORIFICE, High speed, #71D, 150 XP, GT (ORIFICE, High speed, #71D, 150 XP, GT)

ORIFICE, High speed, #72D, 175 (ORIFICE, High speed, #72D, 175)

   (последний код) PLUG

Прокладка, Поплавок bowl (GASKET, Float bowl)

Стопор поплавка (PIN, Float)

Поплавок в сборе. (FLOAT ASSY.)

ORIFICE, Idle air bleed, #43, 150 XP, GT (ORIFICE, Idle air bleed, #43, 150 XP, GT)

ORIFICE, Idle air bleed, #40, 175 (ORIFICE, Idle air bleed, #40, 175)

ORIFICE, Idle air bleed, #36, 150. Early PТягаuction with 433342 or 433343 Stamped on Карбюратор. These Assemblies и Related Parts Must Be Used Together. (ORIFICE, Idle air bleed, #36, 150. Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Together.)

ORIFICE, Idle air bleed, #44, 150. Late PТягаuction with 435528 or 435529 Stamped On Карбюратор. These Assemblies и Related Parts Must Be Used Together. (ORIFICE, Idle air bleed, #44, 150. Late Production with 435528 or 435529 Stamped On Carburetor. These Assemblies and Related Parts Must Be Used Together.)

Винт, Hinge Штифт (SCREW, Hinge pin)

Сальник, Carb, Корпус (SEAL, Carb, body)

SCREEN, Дроссель газа (SCREEN, Throttle body)

FUEL Коллектор, Port & stbd (FUEL MANIFOLD, Port & stbd)

Уплотнительное кольцо, Fuel Коллектор (O-RING, Fuel manifold)

Винт, Carb, Корпус (SCREW, Carb,. body)

Винт, Carb. Корпус (SCREW, Carb. body)

   (последний код) SCREW

Уплотнительное кольцо, Сливной винт (O-RING, Screw plug)

   (последний код) O RING

CARB Корпус AY., 150 (CARB BODY AY., 150)

CARB. Корпус AY., 150 XP, GT 175 (CARB. BODY AY., 150 XP, GT 175)

Струбцина, Сальник to carb. Корпус. Early PТягаuction with 433342 or 433343 Stamped on Карбюратор. These Assemblies и Related Parts Must Be Used Together. (CLAMP, Seal to carb. body. Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Together.)

Крышка Пластина (COVER PLATE)

Прокладка крышки Пластина (GASKET, Cover plate)

Винт, Крышка Пластина (SCREW, Cover plate)

Сальник, Air Глушитель (SEAL, Air silencer)

SCREEN, Fuel (SCREEN, Fuel)

Прокладка коллектора to block - port (GASKET, Manifold to block - port)

   (последний код) GASKET, MANIFOLD

Прокладка коллектора to block - stbd (GASKET, Manifold to block - stbd)

Фиксатор, Карбюратор Соединитель (RETAINER, Carburetor link)

Хомут, Air Корпус глушителя (STRAP, Air silencer cover)

Коллектор AY., Balance Трубка (MANIFOLD AY., Balance tube)

Впускной коллектор в сборе., Port (INTAKE MANIFOLD ASSY., Port)

Впускной коллектор в сборе., Stbd (INTAKE MANIFOLD ASSY., Stbd)

Обратный клапан (CHECK VALVE)

   (последний код) VALVE AY,CHECK

SCREEN (SCREEN)

Ниппель, Primer (NIPPLE, Primer)

Уплотнительное кольцо, Коллектор (O-RING, Manifold)

Соединитель, Port to stbd. Карбюратор (LINK, Port to stbd. carburetor)

   (последний код) LINK

LEAF Пластина в сборе. (LEAF PLATE ASSY.)

   (последний код) LEAF-PLATE-A

Регулировочная шайба (SHIM)

LEAF STOP (LEAF STOP)

Винт (SCREW)

   (последний код) SCREW

LEAF Клапан (LEAF VALVE)

   (последний код) LEAF-VALVE-&

Крышка, Air Глушитель (COVER, Air silencer)

   (последний код) AIR SILENCER AY

Винт, Рычаг (SCREW, Lever)

Ролик колпачка folнижний (ROLLER, Cam follower)

Шайба, Рычаг (WASHER, Lever)

   (последний код) WASHER

Рычаг, Подъемный механизм adjustment (LEVER, Linkage adjustment)

Винт, Крышка to Основание (SCREW, Cover to base)

Винт, Коллектор to Картер двигателя (SCREW, Manifold to crankcase)

   (последний код) SCREW

Сальник, Крышка. Use P / N 309044 сокращёная длина (SEAL, Cover. Use P/N 309044 Cut to Length)

Основание, Air Глушитель (BASE, Air silencer)

   (последний код) AIR SILENCER AY

Винт, Leaf Пластина to Коллектор (SCREW, Leaf plate to manifold)

   (последний код) SCREW

Винт дросселя Корпус to block (SCREW, Throttle body to block)

   (последний код) SCREW

Фиксатор, Balance Трубка (RETAINER, Balance tube)

Сальник, Коллектор to carb - port (SEAL, Manifold to carb - port)

Сальник, Коллектор to carb - stbd (SEAL, Manifold to carb - stbd)

Шланг, Balance Трубка drain. Cut From P / N 336317 (HOSE, Balance tube drain. Cut From P/N 336317)

Уплотнительное кольцо, Ролик & Гильза (O-RING, Roller & sleeve)

Шайба, Primer Ниппель (WASHER, Primer nipple)

Сальник, Крышка (SEAL, Cover)

Ремкомплект карбюратора (CARBURETOR REPAIR KIT)

   (последний код) KIT AY,CARB REPAIR
