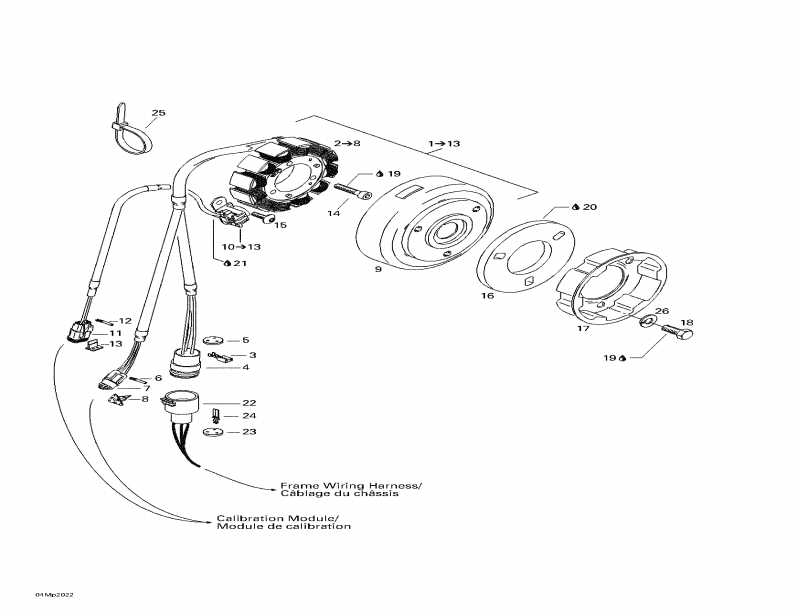

Раздел: Магнето (12v, 290w) | Magneto (12v, 290w)

Магнетов сборе (12V, 290W) Includes 1 - 3. (MagnetoAssy(12V,290W). Includes 1 - 3.)

СтаторПластинав сборе (StatorPlateAssy)

PLATE-STATOR

     (не оригинальная запчасть) Статор BRP SM-01376

Female Клемма (Female Terminal)

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

Сальник (Seal)

Female Клемма (Female Terminal)

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

LOGEMENT FEMEL.*HOUSING-FEMALE

(Female) Secondary Lock (3 Circuits) (Deutsch) ((Female) Secondary Lock (3 Circuits) (Deutsch))

Магнето Маховик (Magneto Flywheel)

VOLANT MOTEUR *FLYWHEEL

Pick-вышев сборе. Includes 10 - 13. (Pick-upAssy. Includes 10 - 13.)

CAPTEUR ASS. *PICKUP-ASSY.

Female Клемма Корпус (2 circuits) (Female Terminal Housing (2 circuits))

Female Клемма (Female Terminal)

Female Lock (2 circuits) (Female Lock (2 circuits))

Socket Head Винт M6 x 30 (Socket Head Screw M6 x 30)

SCREW-ALLEN M6 X 30

Винт M5 x 16 (Screw M5 x 16)

Маховик (Flywheel)

FLY WHEEL (USE 420866752)

Шкив Starting (Pulley Starting)

Шестигранный винт M8 x 20 (Hex. Screw M8 x 20)

VIS *SCREW

Loctite 243, 10 ml (Loctite 243, 10 ml)

LOCTITE-243

Loctite 648, 10 ml (Loctite 648, 10 ml)

LOCTITE 642 *LOCTITE-642

Sikaflex 255, 310 ml (Sikaflex 255, 310 ml)

Male Клемма Корпус (3 circuits) (Male Terminal Housing (3 circuits))

Сальник (3 circuits) (Seal (3 circuits))

Male Клемма (Male Terminal)

Tie Rap 94 mm (Tie Rap 94 mm)

TIE RAP *TIE-RAP

Шайба с блокировкой 8 mm (Lock Washer 8 mm)

RONDELLE-FREIN *WASHER-LOCK#8
