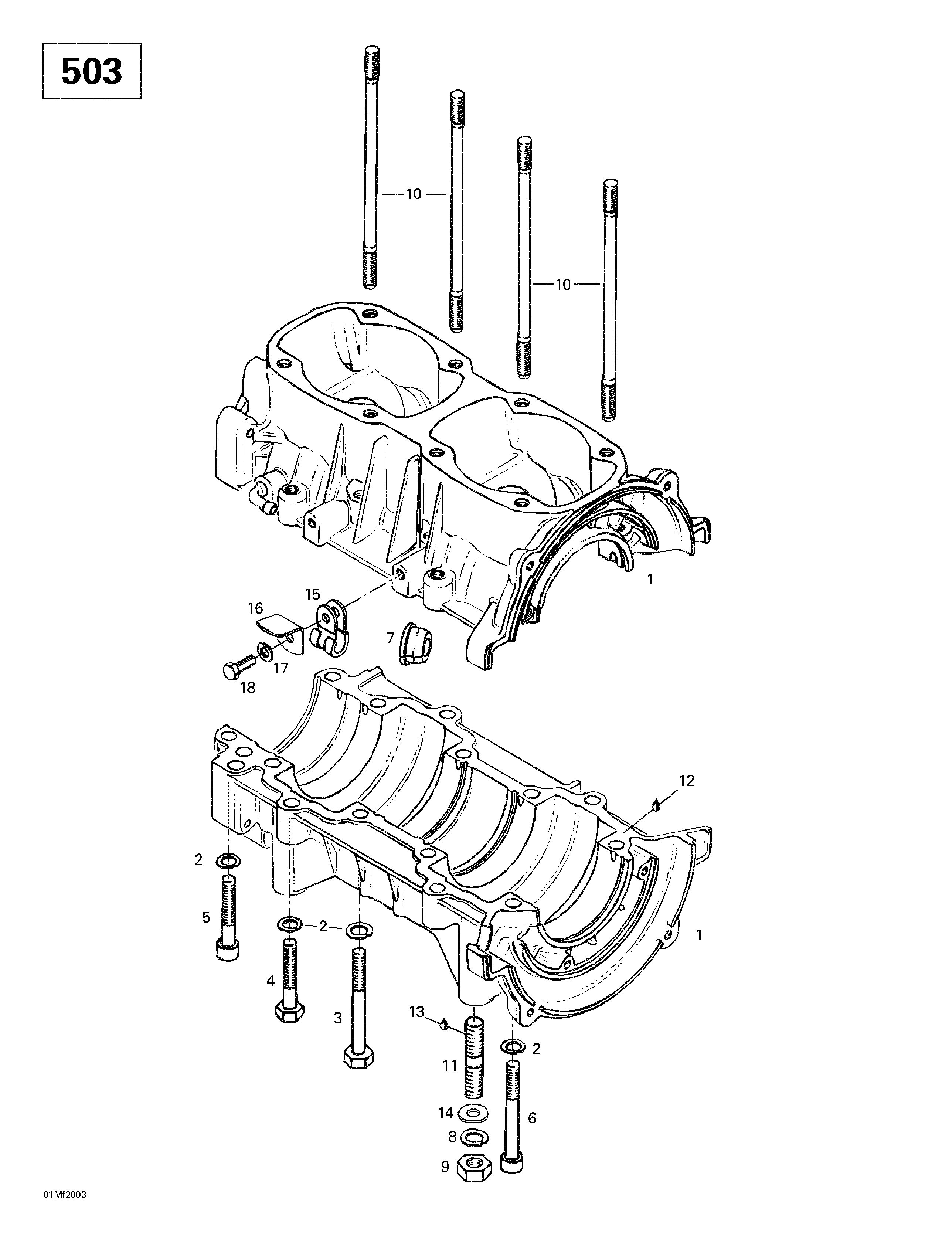

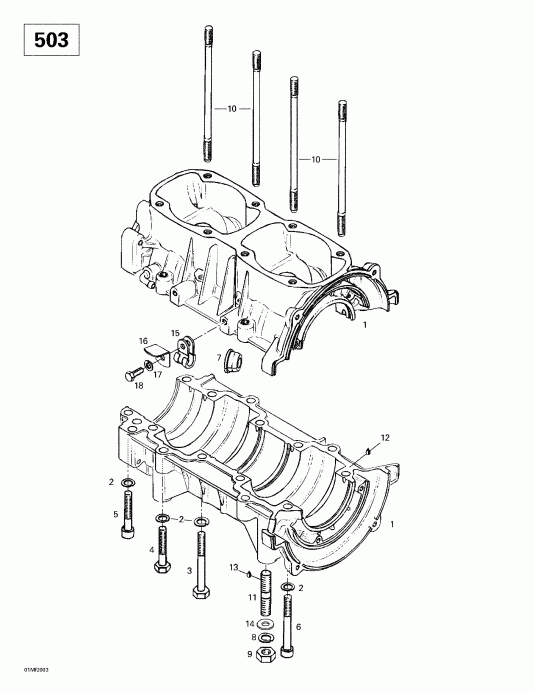

Раздел: Картер двигателя (503) | Crankcase (503)

Картер двигателя в сборе. Includes 1 - 7. Skandic 500. (Crankcase Assy. Includes 1 - 7. Skandic 500.)

CRANKCASE 503

Шайба с блокировкой 8 mm. Skandic 500. (Lock Washer 8 mm. Skandic 500.)

RONDELLE-FREIN *WASHER-LOCK#8

Шестигранный винт M8 x 70. Skandic 500. (Hex. Screw M8 x 70. Skandic 500.)

SCREW-HEX.M8 X 70

Шестигранный винт M8 x 45. Skandic 500. (Hex. Screw M8 x 45. Skandic 500.)

BOULON *BOLT

Allen Винт M8 x 45. Skandic 500. (Allen Screw M8 x 45. Skandic 500.)

Allen Винт M8 x 65. Skandic 500. (Allen Screw M8 x 65. Skandic 500.)

Кабели Crommet. Skandic 500. (Cable Crommet. Skandic 500.)

PASSE-CABLE *GROMMET-CABLE

Lock Пружинная шайба 10 mm. Skandic 500. (Lock Spring Washer 10 mm. Skandic 500.)

WASHER-LOCK SPRING DIN.128A-A2

Hex. Гайка M10. Skandic 500. (Hex. Nut M10. Skandic 500.)

NUT-HEX.M10

Шпилька M8 x 173.5. Skandic 500. (Stud M8 x 173.5. Skandic 500.)

VAARNARUUVI M8X173.5

Шпилька M10 x 29 / 20. Skandic 500. (Stud M10 x 29/20. Skandic 500.)

Loctite 515, 50 ml. Skandic 500. (Loctite 515, 50 ml. Skandic 500.)

Loctite 243, 10 cml. Skandic 500. (Loctite 243, 10 cml. Skandic 500.)

LOCTITE-243

плоский Шайба 10 mm. Skandic 500. (Flat Washer 10 mm. Skandic 500.)

WASHER-FLAT DIN.125A

Зажим (Кабели) Skandic 500. (Clip (Cable). Skandic 500.)

BRIDE DE CABLE *CLAMP-CABLE

Sвышеport. Skandic 500. (Support. Skandic 500.)

Шайба с блокировкой 6 мм. Skandic 500. (Lock Washer 6mm. Skandic 500.)

RONDELLE-FREIN *WASHER-LOCK

Шестигранный винт M6 x 16. Skandic 500. (Hex. Screw M6 x 16. Skandic 500.)

SCREW-HEX.M6 X 16
