АКСЕССУАРЫ НА ЛОДОЧНЫЕ МОТОРЫ SUZUKI
РЕДАКЦИЯ 2012 ГОДА

ВАРИАНТЫ ПОДКЛЮЧЕНИЯ МНОГОФУНКЦИОНАЛЬНЫХ ПРИБОРОВ

Аксессуары на подвесные моторы Сузуки - каталог 2012 года

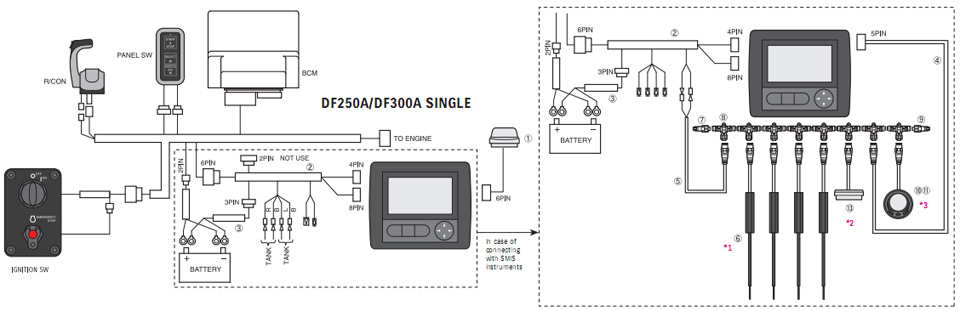

ПОДКЛЮЧЕНИЕ К МОДЕЛИ SUZUKI DF250A/DF300A (ОДИН ДВИГАТЕЛЬ НА СУДНЕ)

NOTE

*1:Analog tank sender and SMIS tank sender can be used together (Maximum 4 senders in total).

*2:In case of connecting and, the priority should be given to.

*3:Available modes of and are Engine revolutions, trimming angle, engine temperature, battery voltage, ground speed, time and position information.

*4:While some of SMIS items have a T-connector in the package, the total number of the T-connector enclosed in them may be short to the required quantity.

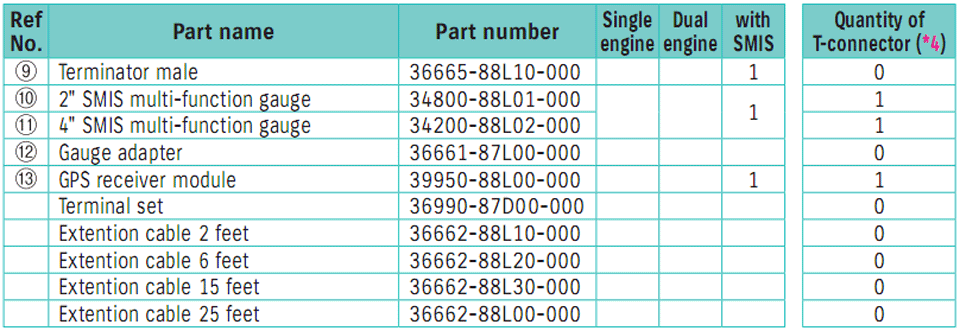

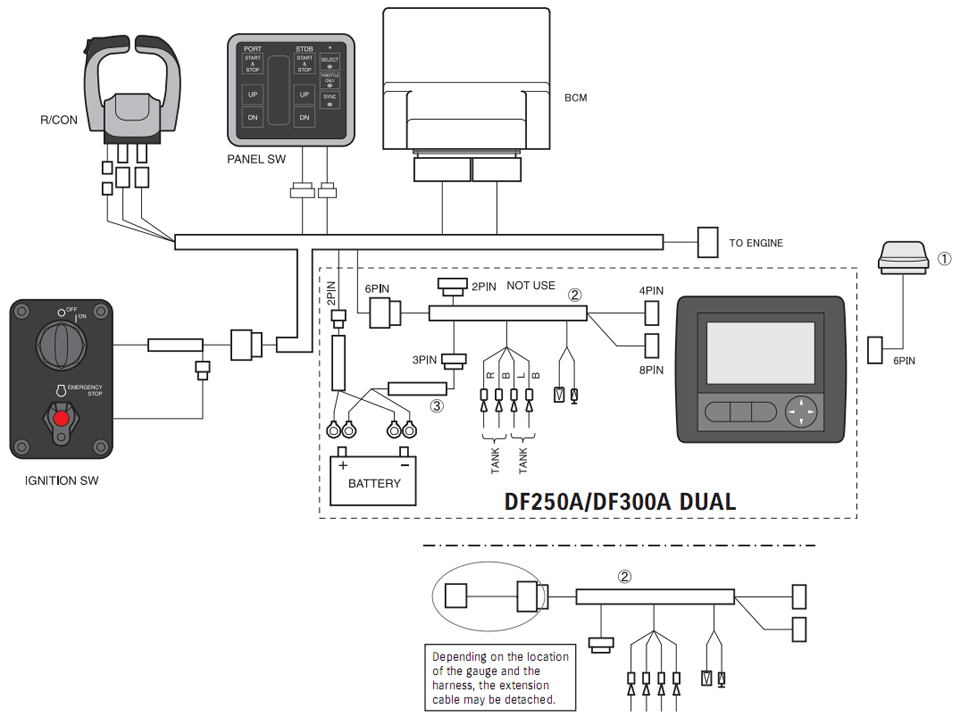

ПОДКЛЮЧЕНИЕ К МОДЕЛИ SUZUKI DF250A/DF300A (ДВА ДВИГАТЕЛЯ НА СУДНЕ)

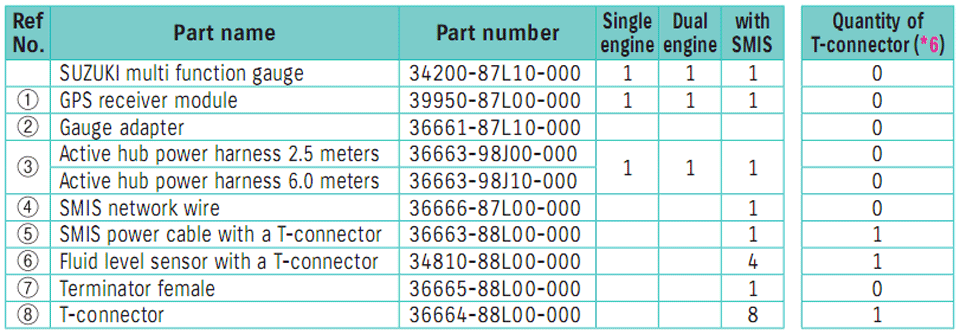

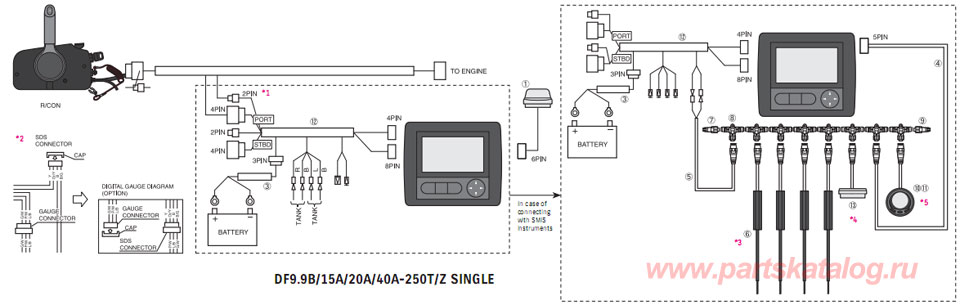

ПОДКЛЮЧЕНИЕ К МОДЕЛИ SUZUKI DF9.9B/15A/20A/40A-250T/Z SINGLE (ОДИН ДВИГАТЕЛЬ НА СУДНЕ)

NOTE

*1: This connection is required only for the engine equipped with a trim sender.

*2: Disconnect the gauge connector and connect with the SDS connector.

*3: Analog tank sender and SMIS tank sender can be used together (Maximum 4 senders in total).

*4: In case of connecting and, the priority should be given to.

*5: Available modes of and are Engine revolutions, trimming angle, engine temperature, battery voltage, ground speed, time and position information.

*6: While some of SMIS items have a T-connector in the package, the total number of the T-connector enclosed in them may be short to the required quantity.

*7: SMIS adapter is required only for DF9.9B/15A/20A as shown in the lower right-hand corner of the page.

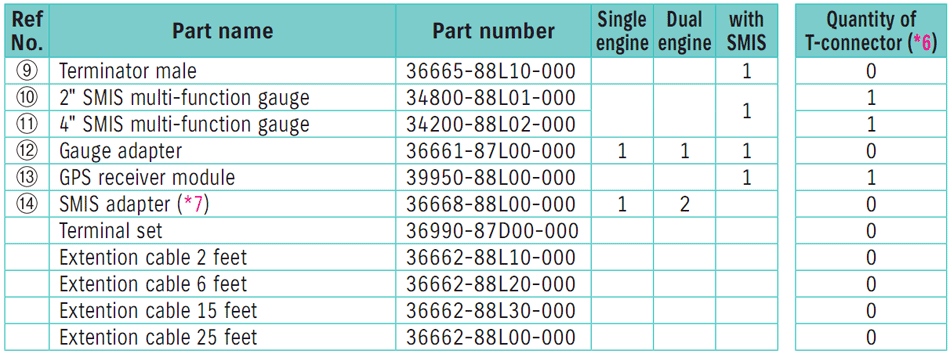

ПОДКЛЮЧЕНИЕ К МОТОРАМ SUZUKI DF9.9B/15A/20A/40A-250T/Z SINGLE (ДВА ДВИГАТЕЛЯ НА СУДНЕ)
