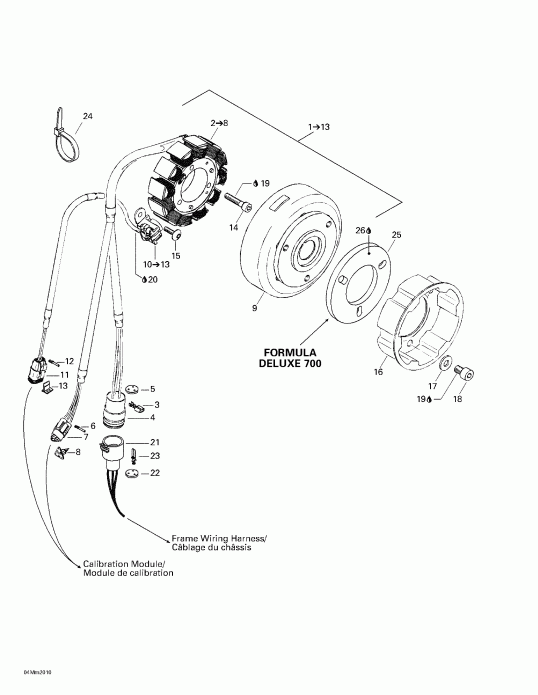

Раздел: Магнето (12v, 290w) | Magneto (12v, 290w)

Магнето в сборе (12V, 290W) Includes 1 - 13. дляmula Deluxe 600. (Magneto Assy (12V, 290W). Includes 1 - 13. Formula Deluxe 600.)

Магнето в сборе (12V, 290W) дляmula Deluxe 700. (Magneto Assy (12V, 290W). Formula Deluxe 700.)

Статор Пластина в сборе. Includes 2 - 8. дляmula Deluxe 600. (Stator Plate Assy. Includes 2 - 8. Formula Deluxe 600.)

PLATE-STATOR

     (не оригинальная запчасть) Статор BRP SM-01376

Статор Пластина в сборе. дляmula Deluxe 700. (Stator Plate Assy. Formula Deluxe 700.)

PLATE-STATOR

     (не оригинальная запчасть) Статор BRP SM-01376

Female Клемма (Female Terminal)

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

Сальник (Seal)

Female Клемма (Female Terminal)

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

LOGEMENT FEMEL.*HOUSING-FEMALE

Female Lock (3 circuits) (Female Lock (3 circuits))

Маховик. дляmula Deluxe 600. (Flywheel. Formula Deluxe 600.)

FLYWHEEL

Маховик. дляmula Deluxe 700. (Flywheel. Formula Deluxe 700.)

VOLANT MOTEUR *FLYWHEEL

Pick-выше в сборе. Includes 10 - 13. (Pick-up Assy. Includes 10 - 13.)

CAPTEUR ASS. *PICKUP-ASSY.

Female Клемма Корпус (2 circuits) (Female Terminal Housing (2 circuits))

Female Клемма (Female Terminal)

Female Lock (2 circuits) (Female Lock (2 circuits))

Socket Head Винт M6 x 30 (Socket Head Screw M6 x 30)

SCREW-ALLEN M6 X 30

Винт M5 x 16 (Screw M5 x 16)

Starting Шкив. дляmula Deluxe 600. (Starting Pulley. Formula Deluxe 600.)

PULL-STARTING

Starting Шкив. дляmula Deluxe 700. (Starting Pulley. Formula Deluxe 700.)

Шайба с блокировкой 8 mm (Lock Washer 8 mm)

RONDELLE-FREIN *WASHER-LOCK#8

Socket Head Винт M8 x 12. дляmula Deluxe 600. (Socket Head Screw M8 x 12. Formula Deluxe 600.)

Socket Head Винт M8 x 20. дляmula Deluxe 700. (Socket Head Screw M8 x 20. Formula Deluxe 700.)

VIS *SCREW

Loctite 243, 10 ml (Loctite 243, 10 ml)

LOCTITE-243

Sikaflex 255, 310 ml (Sikaflex 255, 310 ml)

Male Клемма Корпус (3 circuits) (Male Terminal Housing (3 circuits))

Сальник (3 circuits) (Seal (3 circuits))

Male Клемма (Male Terminal)

Tie Rap 94 mm (Tie Rap 94 mm)

TIE RAP *TIE-RAP

Маховик. дляmula Deluxe 700. (Flywheel. Formula Deluxe 700.)

FLYWHEEL

Loctite 648, 10 ml. дляmula Deluxe 700. (Loctite 648, 10 ml. Formula Deluxe 700.)

LOCTITE 642 *LOCTITE-642
