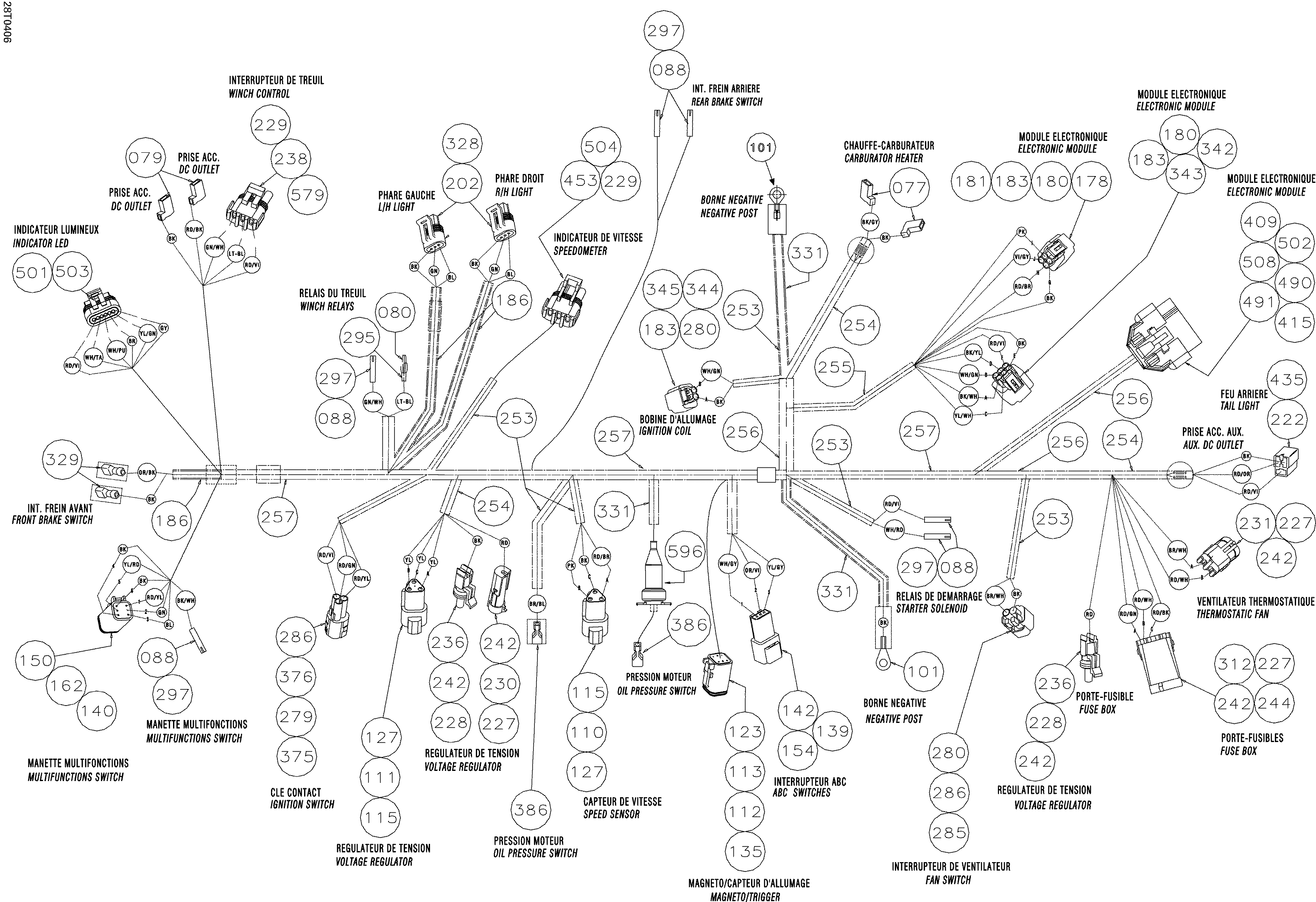

Раздел: Электрика - жгут проводов | Electrical Harness

Жгут проводов в сборе.. Includes Items 1 to 596 (Harness Assy.. Includes Items 1 to 596)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Male Клемма (Male Terminal)

(последний код) Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

(последний код) Female Клемма (Female Terminal)

Open Barrel (Open Barrel)

(последний код) Open Barrel (Open Barrel)

Male Клемма (Male Terminal)

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

(последний код) Female Клемма (Female Terminal)

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Male Клемма Корпус (6 Circuits) (Male Terminal Housing (6 Circuits))

Male Lock (3 Circuits) (Male Lock (3 Circuits))

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Female Клемма Корпус (6 Circuits) (Female Terminal Housing (6 Circuits))

(Male) Secondary Lock (3 Circuits) (Deutsch) ((Male) Secondary Lock (3 Circuits) (Deutsch))

(Female) Secondary Lock (6 Circuits) (Deutsch) ((Female) Secondary Lock (6 Circuits) (Deutsch))

Lock (4 Circuits) (Lock (4 Circuits))

Female Клемма (Female Terminal)

Корпус Tab (4 Circuits) (Housing Tab (4 Circuits))

Провод Сальник (Wire Seal)

Vinyl Трубопровод (Low температура) (Vinyl Tubing (Low Temperature))

Female Клемма (Female Terminal)

Female Клемма Корпус (3 Circuits) (Female Terminal Housing (3 Circuits))

(последний код) Female Клемма Корпус (3 Circuits) (Female Terminal Housing (3 Circuits))

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Female Клемма Корпус (1 Circuit) (Female Terminal Housing (1 Circuit))

Female Клемма Корпус (2 Circuits) (Female Terminal Housing (2 Circuits))

Male Клемма Корпус (1 Circuit) (Male Terminal Housing (1 Circuit))

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Провод Сальник (Wire Seal)

Провод Сальник (Wire Seal)

Трубопровод 6 mm (Tubing 6 mm)

(последний код) Трубопровод 6 mm (Tubing 6 mm)

Трубопровод 9 mm (Tubing 9 mm)

Трубопровод (Tubing)

(последний код) Трубопровод (Tubing)

Трубопровод 16 mm (Tubing 16 mm)

(последний код) Трубопровод 16 mm (Tubing 16 mm)

Трубопровод (Tubing)

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Female Клемма Корпус (2 Circuits) (Female Terminal Housing (2 Circuits))

Сальник (Seal)

Insulated Sheath (Insulated Sheath)

(последний код) Insulated Sheath (Insulated Sheath)

Insulated Sheet (Insulated Sheet)

(последний код) Insulated Sheet (Insulated Sheet)

Male Клемма Корпус (5 Circuits) (Male Terminal Housing (5 Circuits))

Male Клемма Корпус (3 Circuits) (Male Terminal Housing (3 Circuits))

Female Клемма (Female Terminal)

Защита Трубка 4 mm (Protector Tube 4 mm)

Female Клемма Корпус (6 Circuits) (Female Terminal Housing (6 Circuits))

Locking Wage (6 Circuits) (Locking Wage (6 Circuits))

Tab Корпус (Tab Housing)

Secondary Lock (Secondary Lock)

Male Клемма (Male Terminal)

Tab Корпус (Tab Housing)

Female Клемма (Female Terminal)

Заглушка (Plug)

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Female Клемма Корпус (3 Circuits) (Female Terminal Housing (3 Circuits))

Сальник Провод (Seal Wire)

Female Корпус (Female Housing)

Female Клемма (Female Terminal)

Корпус (Housing)

Корпус (Housing)

Провод Сальник (Wire Seal)

(последний код) Провод Сальник (Wire Seal)

Фиксатор Block (Retainer Block)

Провод Сальник (Wire Seal)

Колпачок (Cap)
