NOTE: для USE WITH 2012 & NEWER EVINRUDE PORTABLE MODELS (NOTE: FOR USE WITH 2012 & NEWER EVINRUDE PORTABLE MODELS)

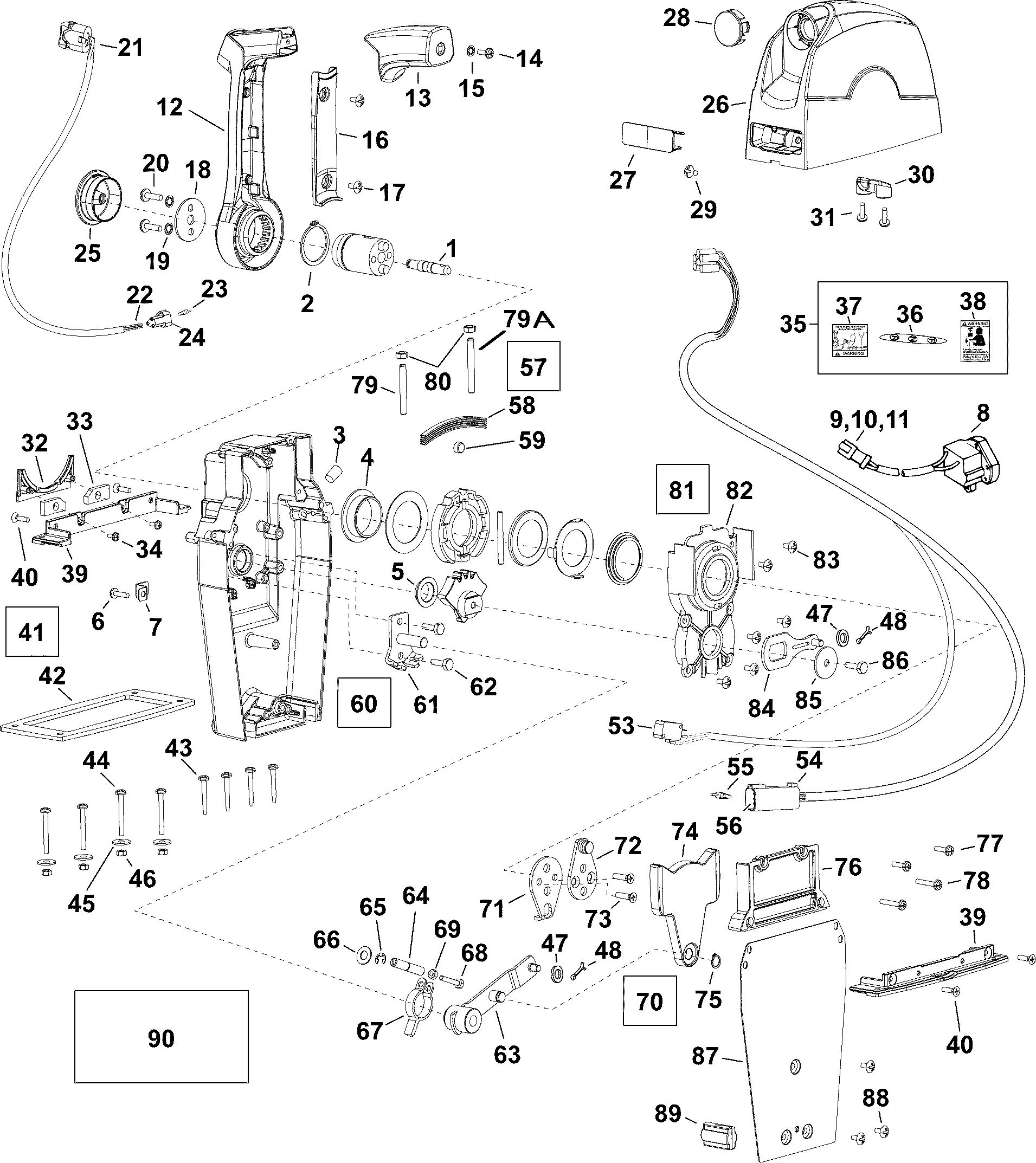

Дистанционное управление Assembly (With OUT Tilt or Ключ Переключатель) Use with Portable 4-Stroke / SAE Управляющие кабелиs. Requires Ignition Переключатель - SIngle Bezel, an MWS Hanrness, и MWS to Portable Adapter Жгут проводов, order separately. (REMOTE CONTROL Assembly (With OUT Tilt or Key Switch). Use with Portable 4-Stroke/SAE Control Cables. Requires Ignition Switch - SIngle Bezel, an MWS Hanrness, and MWS to Portable Adapter Harness, order separately.)

*RELEASE Тяга (RELEASE ROD)

   (последний код) RELEASE ROD,CSM

*Стопорное кольцо. Included in Втулка & Hardware Kit, P / N 5007499 (C-RING. Included in Bushing & Hardware Kit, P/N 5007499)

*Пыльник. Included in Втулка & Hardware Kit, P / N 5007499 (GROMMET. Included in Bushing & Hardware Kit, P/N 5007499)

*Втулка. Included in Втулка & Hardware Kit, P / N 5007499 (BUSHING. Included in Bushing & Hardware Kit, P/N 5007499)

*Втулка. Included in Втулка & Hardware Kit, P / N 5007499 (BUSHING. Included in Bushing & Hardware Kit, P/N 5007499)

*Винт (M5 x 0.8 x 16) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 16). Included in Bushing & Hardware Kit, P/N 5007499)

*Кронштейн. Included in Втулка & Hardware Kit, P / N 5007499 (BRACKET. Included in Bushing & Hardware Kit, P/N 5007499)

*HORN (HORN)

**Клемма, Штифт (TERMINAL, Pin)

**Коннектор, 2-Штифт (CONNECTOR, 2-pin)

**LOCK WEDGE, 2-Штифт (LOCK WEDGE, 2-pin)

*Контрольный рычаг Assembly (CONTROL LEVER Assembly)

**Рукоятка KIT (GRIP KIT)

***Винт (M5 x 0.8 x 12) (SCREW (M5 x 0.8 x 12))

***Шайба (M5) (WASHER (M5))

** Рычаг Крышка KIT ( LEVER COVER KIT)

***Винт (M5 x 0.8 x 10) (SCREW (M5 x 0.8 x 10))

***Фиксатор KIT, Рычаг дросселя. Included in Втулка & Hardware Kit, P / N 5007499 (RETAINER KIT, Throttle arm. Included in Bushing & Hardware Kit, P/N 5007499)

****Шайба. Included in Втулка & Hardware Kit, P / N 5007499 (WASHER. Included in Bushing & Hardware Kit, P/N 5007499)

****Винт (M6 x 1.0 x 18) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M6 x 1.0 x 18). Included in Bushing & Hardware Kit, P/N 5007499)

**TRIM & TILT Переключатель (TRIM & TILT Switch)

***Клемма, Штифт (TERMINAL, pin)

***LOCK WEDGE, 3 Штифт (LOCK WEDGE, 3 pin)

   (последний код) COVER

***Коннектор, 3 Штифт (CONNECTOR, 3 pin)

**RELEASE BUTTON (Крышка) (RELEASE BUTTON (Cover))

*Управление Крышка KIT (CONTROL COVER KIT)

**Колпачок, Friction Adjustment (CAP, Friction Adjustment)

**Колпачок ключа Переключатель opening. Without Ключ Переключатель (CAP, Key switch opening. Without Key Switch)

**Винт (M5 x 0.8 x 10) (SCREW (M5 x 0.8 x 10))

**Провод Держатель (WIRE HOLDER)

**Винт (M5 x 0.8 x 12) (SCREW (M5 x 0.8 x 12))

**Боковая крышка (SIDE COVER)

**Сальник (SEAL)

**Винт (M4 x 0.7 x 8) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M4 x 0.7 x 8). Included in Bushing & Hardware Kit, P/N 5007499)

**Наклейка KIT (DECAL KIT)

***Наклейка (дляward - Neutral - Reverse) (DECAL (Forward - Neutral - Reverse))

***Наклейка Warning 1 (DECAL Warning 1)

***Наклейка Warning 2 (DECAL Warning 2)

*КреплениеING Фланец KIT (MOUNTING FLANGE KIT)

**Винт (M5 x 0.8 x 18) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 18). Included in Bushing & Hardware Kit, P/N 5007499)

*Крепление KIT, Управление & Кабели (MOUNT KIT, CONTROL & CABLE)

**Сальник (SEAL)

**Винт, Self-tapШтифтg (SCREW, Self-tapping)

**Винт (M5 x 0.8 x 40) (SCREW (M5 x 0.8 x 40))

**Шайба (WASHER)

**Гайка (NUT)

**Шайба (WASHER)

   (последний код) WASHER

**Шплинт (COTTER PIN)

   (последний код) PIN,COTTER

**Сальник (SEAL)

*NEUTRAL SW и Жгут проводов ASSEMBLY. Without Ключ Переключатель (NEUTRAL SW AND HARNESS ASSEMBLY. Without Key Switch)

**Коннектор, 6 Штифт (CONNECTOR, 6 pin)

**LOCK WEDGE, 6 Штифт (LOCK WEDGE, 6 pin)

**Клемма, Штифт (TERMINAL, Pin)

*Сдвижной переключатель KIT (SHIFT DETENT KIT)

**Пружина (SPRING)

**Фиксирующий ролик (ROLLER, Detent)

*тормоз Рычаг KIT (BRAKE ARM KIT)

**Кронштейн (BRACKET)

**Винт (M6 x 1.0 x 18) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M6 x 1.0 x 18). Included in Bushing & Hardware Kit, P/N 5007499)

**Рычаг дросселя Assembly. Included in Рычаг дросселя Kit, P / N 766860 (THROTTLE ARM Assembly. Included in Throttle Arm Kit, P/N 766860)

***Регулировка тормоза (BRAKE ADJUST)

***Уплотнительное кольцо (E-RING)

***Шайба (WASHER)

***тормоз Рычаг Assembly (BRAKE ARM Assembly)

****Винт (SCREW)

****Гайка (NUT)

*Рычаг дросселя KIT (THROTTLE ARM KIT)

**Рычаг дросселя Assembly (See #63) (THROTTLE ARM Assembly (See #63))

**Стопор (STOPPER)

**Рычаг дросселя (THROTTLE LEVER)

**Винт (M6 x 1.0 x 20) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M6 x 1.0 x 20). Included in Bushing & Hardware Kit, P/N 5007499)

**DWELL Пластина (DWELL PLATE)

**Стопорное кольцо. Included in Втулка & Hardware Kit, P / N 5007499 (C-RING. Included in Bushing & Hardware Kit, P/N 5007499)

**DWELL Пластина Фиксатор (DWELL PLATE RETAINER)

**Винт (M5 x 0.8 x 16) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 16). Included in Bushing & Hardware Kit, P/N 5007499)

**Винт (M5 x 0.8 x 25) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 25). Included in Bushing & Hardware Kit, P/N 5007499)

**Болт стопора. Included in Втулка & Hardware Kit, P / N 5007499 (BOLT, Stopper. Included in Bushing & Hardware Kit, P/N 5007499)

**Болт Стопор (FWD) (BOLT Stopper (FWD))

**Гайка, Стопор Болт. Included in Втулка & Hardware Kit, P / N 5007499 (NUT, Stopper bolt. Included in Bushing & Hardware Kit, P/N 5007499)

*Переключатель нейтрали Фиксатор (NEUTRAL SWITCH RETAINER)

**Картер коробки передач (GEAR CASE)

**Винт (M5 x 0.8 x 10) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 10). Included in Bushing & Hardware Kit, P/N 5007499)

*Рычаг переключения KIT (SHIFT ARM KIT)

**Шайба (WASHER)

**Винт (M6 x 1.0 x 18) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M6 x 1.0 x 18). Included in Bushing & Hardware Kit, P/N 5007499)

*Контрольная панель box back (PANEL, Control box back)

**Винт (M5 x 0.8 x 10) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 10). Included in Bushing & Hardware Kit, P/N 5007499)

**Кабели Заглушка (CABLE PLUG)

Втулка & HARDWARE KIT (BUSHING & HARDWARE KIT)
