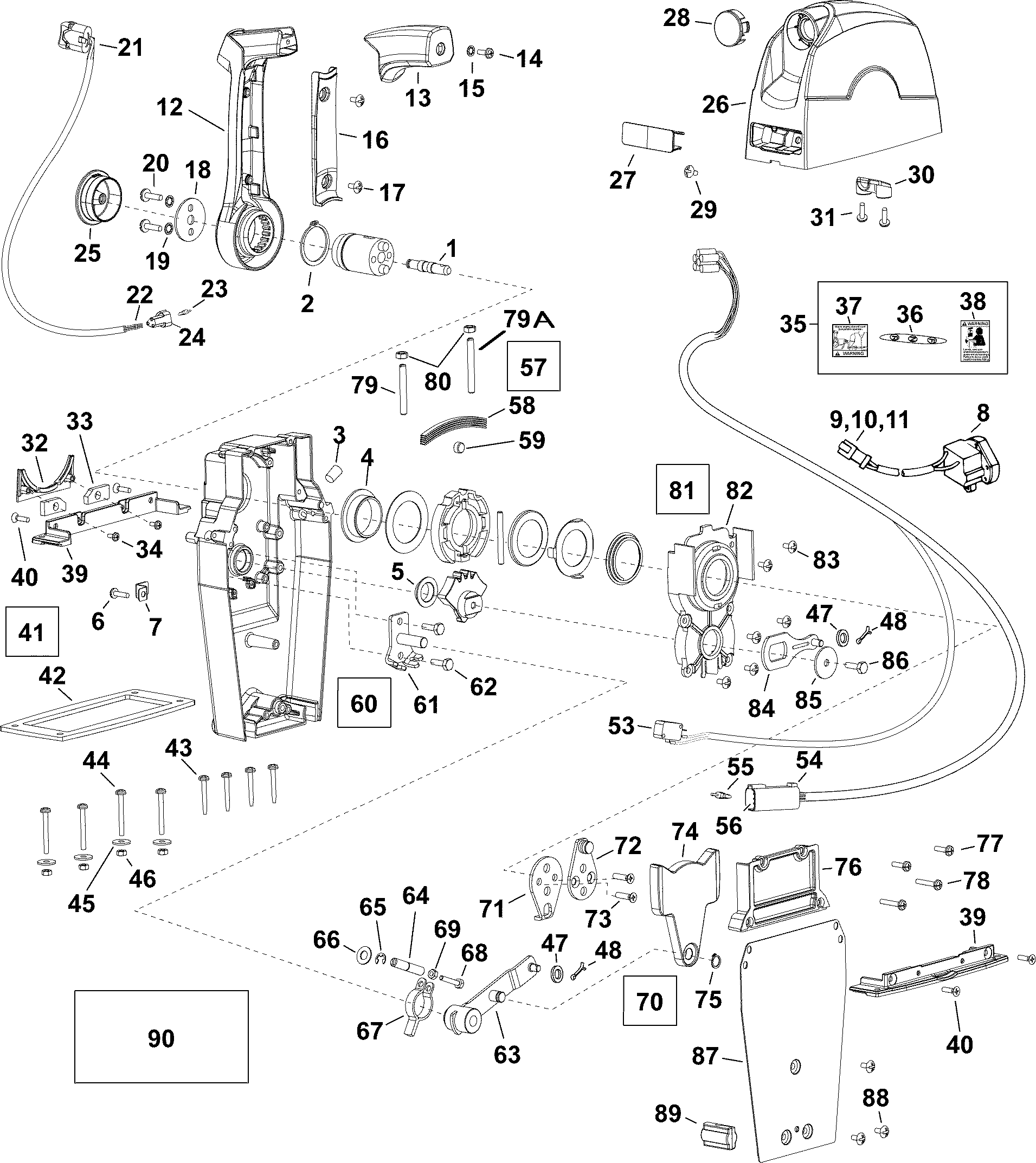

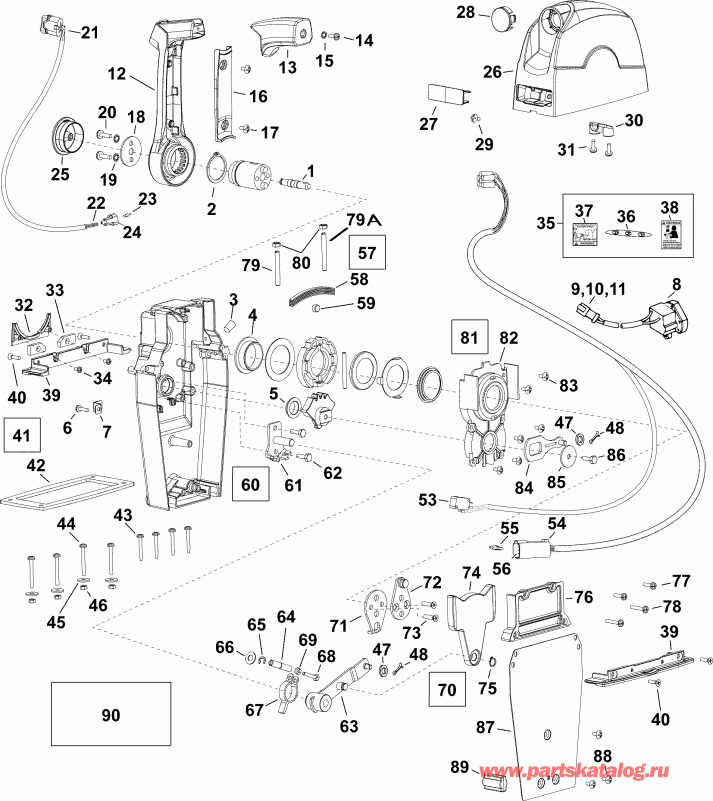

Дистанционное управление Assembly (With OUT Tilt or Ключ Переключатель) Use with 2012 or newer portable outboards (REMOTE CONTROL Assembly (With OUT Tilt or Key Switch). Use with 2012 or newer portable outboards)

*RELEASE Тяга (RELEASE ROD)

   (последний код) RELEASE ROD,CSM

*Стопорное кольцо. Included in Втулка & Hardware Kit, P / N 5007499 (C-RING. Included in Bushing & Hardware Kit, P/N 5007499)

*Пыльник. Included in Втулка & Hardware Kit, P / N 5007499 (GROMMET. Included in Bushing & Hardware Kit, P/N 5007499)

*Втулка. Included in Втулка & Hardware Kit, P / N 5007499 (BUSHING. Included in Bushing & Hardware Kit, P/N 5007499)

*Втулка. Included in Втулка & Hardware Kit, P / N 5007499 (BUSHING. Included in Bushing & Hardware Kit, P/N 5007499)

*Винт (M5 x 0.8 x 16) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 16). Included in Bushing & Hardware Kit, P/N 5007499)

*Кронштейн. Included in Втулка & Hardware Kit, P / N 5007499 (BRACKET. Included in Bushing & Hardware Kit, P/N 5007499)

*HORN (HORN)

**Клемма, Штифт (TERMINAL, Pin)

**Коннектор, 2-Штифт (CONNECTOR, 2-pin)

**LOCK WEDGE, 2-Штифт (LOCK WEDGE, 2-pin)

*Контрольный рычаг Assembly (CONTROL LEVER Assembly)

**Рукоятка KIT (GRIP KIT)

***Винт (M5 x 0.8 x 12) (SCREW (M5 x 0.8 x 12))

***Шайба (M5) (WASHER (M5))

** Рычаг Крышка KIT ( LEVER COVER KIT)

***Винт (M5 x 0.8 x 10) (SCREW (M5 x 0.8 x 10))

***Фиксатор KIT, Рычаг дросселя. Included in Втулка & Hardware Kit, P / N 5007499 (RETAINER KIT, Throttle arm. Included in Bushing & Hardware Kit, P/N 5007499)

****Шайба. Included in Втулка & Hardware Kit, P / N 5007499 (WASHER. Included in Bushing & Hardware Kit, P/N 5007499)

****Винт (M6 x 1.0 x 18) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M6 x 1.0 x 18). Included in Bushing & Hardware Kit, P/N 5007499)

**TRIM & TILT Переключатель (TRIM & TILT Switch)

***Клемма, Штифт (TERMINAL, pin)

***LOCK WEDGE, 3 Штифт (LOCK WEDGE, 3 pin)

   (последний код) COVER

***Коннектор, 3 Штифт (CONNECTOR, 3 pin)

**RELEASE BUTTON (Крышка) (RELEASE BUTTON (Cover))

*Управление Крышка KIT (CONTROL COVER KIT)

**Колпачок, Friction Adjustment (CAP, Friction Adjustment)

**Колпачок ключа Переключатель opening. Without Ключ Переключатель (CAP, Key switch opening. Without Key Switch)

**Винт (M5 x 0.8 x 10) (SCREW (M5 x 0.8 x 10))

**Провод Держатель (WIRE HOLDER)

**Винт (M5 x 0.8 x 12) (SCREW (M5 x 0.8 x 12))

**Боковая крышка (SIDE COVER)

**Сальник (SEAL)

**Винт (M4 x 0.7 x 8) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M4 x 0.7 x 8). Included in Bushing & Hardware Kit, P/N 5007499)

**Наклейка KIT (DECAL KIT)

***Наклейка (дляward - Neutral - Reverse) (DECAL (Forward - Neutral - Reverse))

***Наклейка Warning 1 (DECAL Warning 1)

***Наклейка Warning 2 (DECAL Warning 2)

*КреплениеING Фланец KIT (MOUNTING FLANGE KIT)

**Винт (M5 x 0.8 x 18) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 18). Included in Bushing & Hardware Kit, P/N 5007499)

*Крепление KIT, Управление & Кабели (MOUNT KIT, CONTROL & CABLE)

**Сальник (SEAL)

**Винт, Self-tapШтифтg (SCREW, Self-tapping)

**Винт (M5 x 0.8 x 40) (SCREW (M5 x 0.8 x 40))

**Шайба (WASHER)

**Гайка (NUT)

**Шайба (WASHER)

   (последний код) WASHER

**Шплинт (COTTER PIN)

   (последний код) PIN,COTTER

**Сальник (SEAL)

*NEUTRAL SW и Жгут проводов ASSEMBLY. Without Ключ Переключатель (NEUTRAL SW AND HARNESS ASSEMBLY. Without Key Switch)

**Коннектор, 6 Штифт (CONNECTOR, 6 pin)

**LOCK WEDGE, 6 Штифт (LOCK WEDGE, 6 pin)

**Клемма, Штифт (TERMINAL, Pin)

*Сдвижной переключатель KIT (SHIFT DETENT KIT)

**Пружина (SPRING)

**Фиксирующий ролик (ROLLER, Detent)

*тормоз Рычаг KIT (BRAKE ARM KIT)

**Кронштейн (BRACKET)

**Винт (M6 x 1.0 x 18) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M6 x 1.0 x 18). Included in Bushing & Hardware Kit, P/N 5007499)

**Рычаг дросселя Assembly. Included in Рычаг дросселя Kit, P / N 766860 (THROTTLE ARM Assembly. Included in Throttle Arm Kit, P/N 766860)

***Регулировка тормоза (BRAKE ADJUST)

***Уплотнительное кольцо (E-RING)

***Шайба (WASHER)

***тормоз Рычаг Assembly (BRAKE ARM Assembly)

****Винт (SCREW)

****Гайка (NUT)

*Рычаг дросселя KIT (THROTTLE ARM KIT)

**Рычаг дросселя Assembly (See #63) (THROTTLE ARM Assembly (See #63))

**Стопор (STOPPER)

**Рычаг дросселя (THROTTLE LEVER)

**Винт (M6 x 1.0 x 20) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M6 x 1.0 x 20). Included in Bushing & Hardware Kit, P/N 5007499)

**DWELL Пластина (DWELL PLATE)

**Стопорное кольцо. Included in Втулка & Hardware Kit, P / N 5007499 (C-RING. Included in Bushing & Hardware Kit, P/N 5007499)

**DWELL Пластина Фиксатор (DWELL PLATE RETAINER)

**Винт (M5 x 0.8 x 16) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 16). Included in Bushing & Hardware Kit, P/N 5007499)

**Винт (M5 x 0.8 x 25) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 25). Included in Bushing & Hardware Kit, P/N 5007499)

**Болт стопора. Included in Втулка & Hardware Kit, P / N 5007499 (BOLT, Stopper. Included in Bushing & Hardware Kit, P/N 5007499)

**Болт Стопор (FWD) (BOLT Stopper (FWD))

**Гайка, Стопор Болт. Included in Втулка & Hardware Kit, P / N 5007499 (NUT, Stopper bolt. Included in Bushing & Hardware Kit, P/N 5007499)

*Переключатель нейтрали Фиксатор (NEUTRAL SWITCH RETAINER)

**Картер коробки передач (GEAR CASE)

**Винт (M5 x 0.8 x 10) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 10). Included in Bushing & Hardware Kit, P/N 5007499)

*Рычаг переключения KIT (SHIFT ARM KIT)

**Шайба (WASHER)

**Винт (M6 x 1.0 x 18) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M6 x 1.0 x 18). Included in Bushing & Hardware Kit, P/N 5007499)

*Контрольная панель box back (PANEL, Control box back)

**Винт (M5 x 0.8 x 10) Included in Втулка & Hardware Kit, P / N 5007499 (SCREW (M5 x 0.8 x 10). Included in Bushing & Hardware Kit, P/N 5007499)

**Кабели Заглушка (CABLE PLUG)

Втулка & HARDWARE KIT (BUSHING & HARDWARE KIT)
