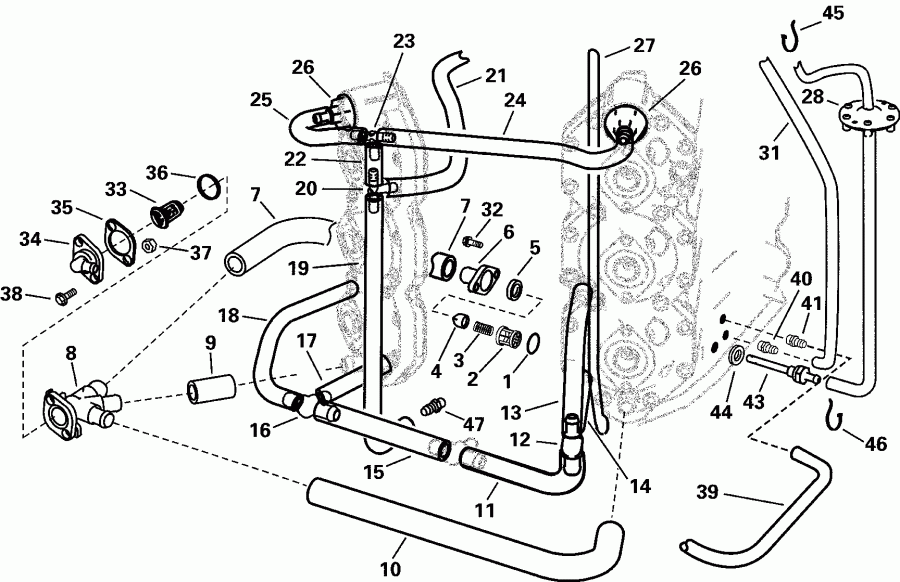

Уплотнительное кольцо (O-RING)

Гильза, Pressure relief (SLEEVE, Pressure relief)

Пружина давления relief (SPRING, Pressure relief)

Клапан давления relief (VALVE, Pressure relief)

   (последний код) VALVE,BLOW OFF

Сальник, Pressure relief Клапан (SEAL, Pressure relief valve)

Колпачок, Pressure relief Клапан (CAP, Pressure relief valve)

Шланг, Tee to pressure relief - W. Use 2 - P / N 979803 to Retain (HOSE, Tee to pressure relief - W. Use 2 - P/N 979803 to Retain)

   (последний код) HOSE

Корпус, Термостат (HOUSING, Thermostat)

Шланг, Head to tee, port - X. Use 2 - P / N 984302 to Retain (HOSE, Head to tee, port - X. Use 2 - P/N 984302 to Retain)

Шланг, Head to tee, stbd. - X. Use 2 - P / N 984302 to Retain (HOSE, Head to tee, stbd. - X. Use 2 - P/N 984302 to Retain)

Водяной шланг sвышеply, stbd. - Y. Use 2 - P / N 980863 to Retain (HOSE, Water supply, stbd. - Y. Use 2 - P/N 980863 to Retain)

TEE, Water sвышеply, stbd. (TEE, Water supply, stbd.)

Шланг, Tee to head, верхний , stbd. - Y. Use 2 - P / N 980863 to Retain (HOSE, Tee to head, upper, stbd. - Y. Use 2 - P/N 980863 to Retain)

Шланг, Tee to head, нижний , stbd. - Y. Use 2 - P / N 980863 to Retain (HOSE, Tee to head, lower, stbd. - Y. Use 2 - P/N 980863 to Retain)

Водяной шланг sвышеply, port - Y. Use 2 - P / N 980863 to Retain (HOSE, Water supply, port - Y. Use 2 - P/N 980863 to Retain)

TEE, Water sвышеply, port (TEE, Water supply, port)

Шланг, Fitting to head, нижний , port - Y. Use 2 - P / N 980863 to Retain (HOSE, Fitting to head, lower, port - Y. Use 2 - P/N 980863 to Retain)

Шланг, Fitting to head, верхний , port - Y. Use 2 - P / N 980863 to Retain (HOSE, Fitting to head, upper, port - Y. Use 2 - P/N 980863 to Retain)

Шланг, Tee to Блок цилиндра, drain - Z. Use 2 - P / N 320107 to Retain (HOSE, Tee to cylinder block, drain - Z. Use 2 - P/N 320107 to Retain)

TEE, Термостат & EMM drain (TEE, Thermostat & EMM drain)

Шланг, ECU drain - Z. Use 2 - P / N 320107 to Retain (HOSE, ECU drain - Z. Use 2 - P/N 320107 to Retain)

Шланг, Tee to tee - Y. Use 2 - P / N 980863 to Retain (HOSE, Tee to tee - Y. Use 2 - P/N 980863 to Retain)

TEE, Термостат drain (TEE, Thermostat drain)

Шланг, Термостат drain, stbd. - Z. Use 2 - P / N 320107 to Retain (HOSE, Thermostat drain, stbd. - Z. Use 2 - P/N 320107 to Retain)

Шланг, Термостат drain, port - Z. Use 2 - P / N 320107 to Retain (HOSE, Thermostat drain, port - Z. Use 2 - P/N 320107 to Retain)

Крышка термостата (COVER, Thermostat)

Шланг, Блок цилиндра vent - Z. Use 2 - P / N 320107 to Retain (HOSE, Cylinder block vent - Z. Use 2 - P/N 320107 to Retain)

Диафрагма & Шланг в сборе., Выхлоп pressure isolation (DIAPHRAGM & HOSE ASSY., Exhaust pressure isolation)

   (последний код) DIAPHRAGM/HOSE AY

Водяной шланг sвышеply to Пароотделитель - Z. Use 2 - P / N 320107 to Retain (HOSE, Water supply to vapor separator - Z. Use 2 - P/N 320107 to Retain)

Винт, pressure relief Колпачок (SCREW, pressure relief cap)

   (последний код) SCREW

Термостат в сборе., нижний (THERMOSTAT ASSY., Lower)

   (последний код) THERMOSTAT-A

Крышка термостата (COVER, Thermostat)

Прокладка крышки термостата (GASKET, Thermostat cover)

Сальник термостата (SEAL, Thermostat)

Гайка, Крышка to Корпус (NUT, Cover to housing)

Винт (SCREW)

   (последний код) SCREW,IMP HSG

Шланг, нижний Термостат drain - Z. Use 2 - P / N 320107 to Retain (HOSE, Lower thermostat drain - Z. Use 2 - P/N 320107 to Retain)

Ниппель, Water to Пароотделитель (NIPPLE, Water to vapor separator)

   (последний код) NIPPLE KIT

Ниппель, нижний Термостат drain (NIPPLE, Lower thermostat drain)

FITTING, Выхлоп pressure (FITTING, Exhaust pressure)

   (последний код) NIPPLE AY,EXHAUST

Прокладка выпускной системы fitting (GASKET, Exhaust fitting)

Крепёжный хомут, Шланг to EMM (TIE STRAP, Hose to EMM)

   (последний код) TIE-STRAP

Крепёжный хомут, Шланг to Выхлоп pressure probe (TIE STRAP, Hose to exhaust pressure probe)

   (последний код) BAND,REM CON

Ниппель, Термостат drain (NIPPLE, Thermostat drain)
