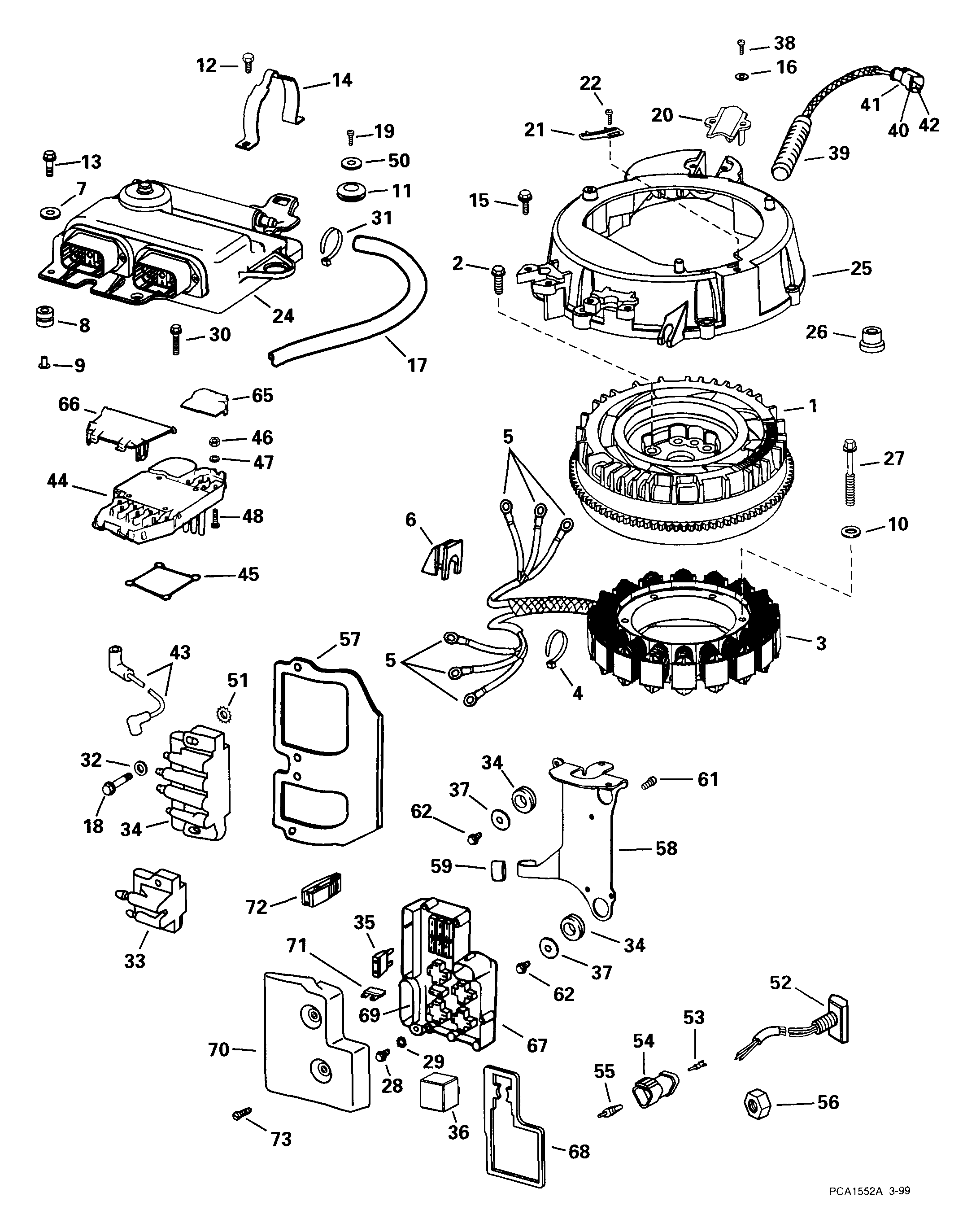

Маховик в сборе. (FLYWHEEL ASSY.)

Винт, Маховик (SCREW, Flywheel)

   (последний код) SCREW

Статор в сборе. (STATOR ASSY.)

Крепёжный хомут (TIE STRAP)

   (последний код) BAND,REM CON

Клемма, Кольцо (TERMINAL, Ring)

   (последний код) TERMINAL,RIN

Фиксатор, Кабелиs (RETAINER, Cables)

плоский Шайба (FLAT WASHER)

   (последний код) WASHER

ISOLATOR / Крепление, ECU, rear (ISOLATOR/MOUNT, ECU, rear)

ФланецD Проставка, ECU, rear (FLANGED SPACER, ECU, rear)

Шайба с блокировкой, Винт, Статор (LOCK WASHER, Screw, stator)

Пыльник, ECU Креплениеing, front (GROMMET, ECU mounting, front)

   (последний код) GROMMET

Винт зажима to ECU (SCREW, Clamp to ECU)

   (последний код) SCREW

Винт, ECU to Выпрямитель / Регулятор (SCREW, ECU to rectifier/regulator)

   (последний код) SCREW

Струбцина, Колпачокacitor to ECU (CLAMP, Capacitor to ECU)

Винт, Крышка маховика (SCREW, Flywheel cover)

   (последний код) SCREW,IMP HSG

Шайба (WASHER)

   (последний код) WASHER

Шланг, ECU water out. All Except "O" Suffix Models (HOSE, ECU water out. All Except "O" Suffix Models .)

Шланг, ECU water out. "O" Suffix Models Only (HOSE, ECU water out. "O" Suffix Models Only .)

Винт, Coil Креплениеing (SCREW, Coil mounting)

   (последний код) SCREW

Винт, ECU to Крышка (SCREW, ECU to cover)

Крышка датчика (COVER, Sensor)

TIMING POINTER (TIMING POINTER)

   (последний код) POINTER,TIMING

Винт, Timing pointer (SCREW, Timing pointer)

ECU & IGN. MODULE, 150. "V" suffix only. This part must be ordeкрасный from Warranty / Technical Сервис Department. (ECU & IGN. MODULE, 150. "V" suffix only. This part must be ordered from Warranty/Technical Service Department.)

ECU & IGN. MODULE, 175. "V" suffix only. This part must be ordeкрасный from Warranty / Technical Сервис Department. (ECU & IGN. MODULE, 175. "V" suffix only. This part must be ordered from Warranty/Technical Service Department.)

ECU & IGN. MODULE, 150. "V" suffix only. "A" Suffix Models Only Software is Component of Enhancement Package, P / N 5001213. Contact OMC Technical Сервис Dept. if package has not been installed. (ECU & IGN. MODULE, 150. "V" suffix only. "A" Suffix Models Only . Software is Component of Enhancement Package, P/N 5001213. Contact OMC Technical Service Dept. if package has not been installed. .)

ECU & IGN. MODULE, 175. "V" suffix only. 175FPLC, 175FSLS, 175FPXC, 175FCXC Models Only Software is Component of Enhancement Package, P / N 5001213. Contact OMC Technical Сервис Dept. if package has not been installed. (ECU & IGN. MODULE, 175. "V" suffix only. 175FPLC, 175FSLS, 175FPXC, 175FCXC Models Only . Software is Component of Enhancement Package, P/N 5001213. Contact OMC Technical Service Dept. if package has not been installed. .)

ECU & IGN. MODULE, 150. "V" suffix only. 150FPXN, 150FCXN Models Only Software is Component of Enhancement Package, P / N 5001213. Contact OMC Technical Сервис Dept. if package has not been installed. (ECU & IGN. MODULE, 150. "V" suffix only. 150FPXN, 150FCXN Models Only . Software is Component of Enhancement Package, P/N 5001213. Contact OMC Technical Service Dept. if package has not been installed. .)

ECU & IGN. MODULE, 175. "V" suffix only. 175FPXN, 175FCXN Models Only Software is Component of Enhancement Package, P / N 5001213. Contact OMC Technical Сервис Dept. if package has not been installed. (ECU & IGN. MODULE, 175. "V" suffix only. 175FPXN, 175FCXN Models Only . Software is Component of Enhancement Package, P/N 5001213. Contact OMC Technical Service Dept. if package has not been installed. .)

ECU & IGN. MODULE, 150. "V" suffix only. "A" Suffix Models Only Requiкрасный if Replacement Powerhead, P / N 484430, has been installed. (ECU & IGN. MODULE, 150. "V" suffix only. "A" Suffix Models Only . Required if Replacement Powerhead, P/N 484430, has been installed. .)

ECU & IGN. MODULE, 175. "V" suffix only. 175FPLC, 175FSLS, 175FPXC, 175FCXC Models Only Requiкрасный if Replacement Powerhead, P / N 484431, has been installed. (ECU & IGN. MODULE, 175. "V" suffix only. 175FPLC, 175FSLS, 175FPXC, 175FCXC Models Only . Required if Replacement Powerhead, P/N 484431, has been installed. .)

ECU & IGN. MODULE, 150. "V" suffix only. 150FPXN, 150FCXN Models Only Requiкрасный if Replacement Powerhead, P / N 484430, has been installed. (ECU & IGN. MODULE, 150. "V" suffix only. 150FPXN, 150FCXN Models Only . Required if Replacement Powerhead, P/N 484430, has been installed. .)

ECU & IGN. MODULE, 175. "V" suffix only. 175FPXN, 175FCXN Models Only Requiкрасный if Replacement Powerhead, P / N 484431, has been installed. (ECU & IGN. MODULE, 175. "V" suffix only. 175FPXN, 175FCXN Models Only . Required if Replacement Powerhead, P/N 484431, has been installed. .)

Крышка в сборе, Маховик (COVER ASSY., Flywheel)

   (последний код) COVER AY,FLYWHEEL

Втулка, Шестерня & Вал to Крышка (BUSHING, Pinion & shaft to cover)

   (последний код) BUSHING

Винт, Статор Креплениеing (SCREW, Stator mounting)

Винт, Auxiliary battery lead (SCREW, Auxiliary battery lead)

   (последний код) SCREW

Шайба с блокировкой (LOCK WASHER)

   (последний код) WASHER,LOCK

Винт, Регулятор (SCREW, Regulator)

Крепёжный хомут (TIE STRAP)

   (последний код) BAND,REM CON

плоский Шайба, Coil Креплениеing (FLAT WASHER, Coil mounting)

   (последний код) WASHER

Катушка в сборе., Single (COIL ASSY., Single)

Катушка в сборе., Dual (COIL ASSY., Dual)

   (последний код) IGNITION COIL

Предохранитель, 10 Amp (FUSE, 10 Amp)

Реле в сборе. (RELAY ASSY.)

   (последний код) RELAY AY

Шайба, Кронштейн to block (WASHER, Bracket to block)

   (последний код) WASHER

Винт, Крышка датчика (SCREW, Cover, sensor)

Датчик в сборе., Кривошип position (SENSOR ASSY., Crank position)

Клемма, Штифт (TERMINAL, Pin)

Коннектор (CONNECTOR)

LOCK WEDGE (LOCK WEDGE)

LEAD в сборе., Катушка зажигания (LEAD ASSY., Ignition coil)

   (последний код) LEAD AY,H/T-SUPP

Выпрямитель & Регулятор (RECTIFIER & REGULATOR)

Сальник, Регулятор to Картер двигателя (SEAL, Regulator to crankcase)

Гайка (NUT)

Шайба, Leads (WASHER, Leads)

Винт, Регулятор Клемма (SCREW, Regulator terminal)

Шайба, ECU to Крышка (WASHER, ECU to cover)

Шайба с блокировкой, Coils (LOCK WASHER, Coils)

   (последний код) WASHER,LOCK

Переключатель в сборе., Trim & tilt (SWITCH ASSY., Trim & tilt)

Клемма, Штифт (TERMINAL, Pin)

Коннектор, 3-Штифт (CONNECTOR, 3-pin)

LOCK WEDGE (LOCK WEDGE)

Гайка, Переключатель (NUT, Switch)

Кронштейн катушки (COIL BRACKET)

   (последний код) BRACKET AY,COIL

Кронштейн, Power distribution panel (BRACKET, Power distribution panel)

Бампер, Кронштейн to block (BUMPER, Bracket to block)

Пыльник, Кронштейн to block (GROMMET, Bracket to block)

   (последний код) GROMMET

Винт, Предохранитель & Реле to Кронштейн (SCREW, Fuse & relay to bracket)

   (последний код) SCREW

Винт, Кронштейн to block (SCREW, Bracket to block)

   (последний код) SCREW

Крышка, Выпрямитель, port (COVER, Rectifier, port)

Крышка, Выпрямитель, starboard (COVER, Rectifier, starboard)

POWER DISTRIBUTION PANEL в сборе. (POWER DISTRIBUTION PANEL ASSY.)

   (последний код) HSG&CVR AY,FU&RLY

Сальник, Крышка (SEAL, Cover)

Прокладка, Коннектор (GASKET, Connector)

   (последний код) GASKET,CONNE

Крышка в сборе (COVER ASSY.)

Предохранитель, 10 Amp, spare (FUSE, 10 Amp, spare)

Предохранитель, Съёмник (FUSE, Puller)

Винт (SCREW)
