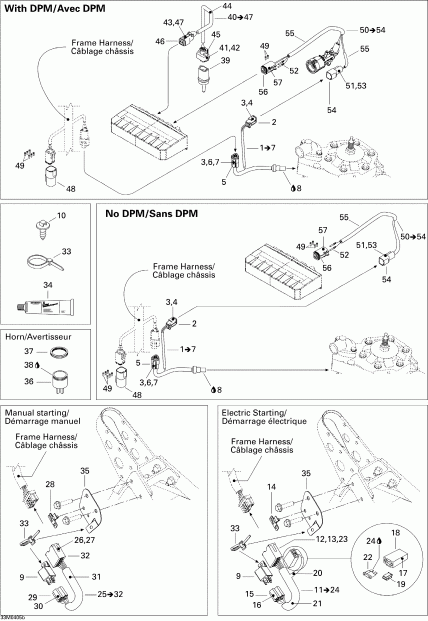

Раздел: Электрика System 2 | Electrical System 2

температура Датчик. Includes items 1 to 7 (Temperature Sensor. Includes items 1 to 7)

TEMP. SENSOR

Female Клемма Корпус (2 Circuits) (Female Terminal Housing (2 Circuits))

Female Клемма (Female Terminal)

Female Lock (2 Circuits) (Female Lock (2 Circuits))

Female Клемма Корпус (3 Circuits) (Female Terminal Housing (3 Circuits))

Female Lock (3 Circuits) (Female Lock (3 Circuits))

Заглушка (Plug)

Loctite 592, Трубка Сальникant, 50 ml (Loctite 592, Pipe Sealant, 50 ml)

ENDUIT ETANCHE *SEALANT-TEFLON

Реле (Relay)

Dart Крепление (Dart Mount)

DARD D ANCRAGE *DART-MOUNT

Configuration Жгут проводов в сборе. Includes items 11 to 24 / Electric starting (Configuration Harness AssY. Includes items 11 to 24 / Electric starting)

Male Клемма (Male Terminal)

Male Клемма (Male Terminal)

Корпус Sвышеport (Housing Support)

Female Клемма Корпус (5 Circuits) (Female Terminal Housing (5 Circuits))

Female Клемма (Female Terminal)

COSSE FIXATION *TERMINAL-CONN.

Female Клемма (Female Terminal)

Предохранитель Держатель (Fuse Holder)

Зажим (Clip)

Трубопровод (6 мм) (Tubing (6 mm))

GAINE *PROTECTOR TUBE

Трубопровод (13 мм) (Tubing (13 mm))

GAINE *HOUSING

Предохранитель (Fuse)

FUSIBLE 5 AMP. *FUSE-5 AMP.

Male Клемма Корпус (Male Terminal Housing)

Dielectric Смазка, 150 g (Dielectric Grease, 150 g)

GRAISSE *GREASE

Configuration Жгут проводов. Includes items 25 to 32 / ручной starting (Configuration Harness. Includes items 25 to 32 / Manual starting)

CABLAGE CONF. *HARNESS-CONF.

Male Клемма (Male Terminal)

Male Клемма (Male Terminal)

Корпус Sвышеport (Housing Support)

Female Клемма Корпус (5 Circuits) (Female Terminal Housing (5 Circuits))

Female Клемма (Female Terminal)

COSSE FIXATION *TERMINAL-CONN.

Трубопровод (13 мм) (Tubing (13 mm))

GAINE *HOUSING

Male Клемма Корпус (Male Terminal Housing)

Tie Rap 180 mm (Tie Rap 180 mm)

TIE RAP *TIE-RAP

Tie Rap 160 mm (Tie Rap 160 mm)

Dielectric Смазка, 150 g (Dielectric Grease, 150 g)

GRAISSE *GREASE

Жгут проводов Sвышеport (Harness Support)

HARNESS SUPPORT

Horn. Reverse (Horn. Reverse)

HORN

пластиковый Гайка. Reverse (Plastic Nut. Reverse)

Сальникant Silicone, Clear. Reverse (Sealant Silicone, Clear. Reverse)

SCELL.SILICONE *SEAL-SILICONE

Air Датчик. With DPM (Air Sensor. With DPM)

температура Жгут проводов. Includes items 40 to 47 / With DPM (Temperature Harness. Includes items 40 to 47 / With DPM)

Female Клемма (Female Terminal)

TERMINAL F. *TERMINAL F.

Сальник (Seal)

Female Клемма (Female Terminal)

Трубопровод (Tubing)

Female Клемма Корпус (2 Circuits) (Female Terminal Housing (2 Circuits))

Female Клемма Корпус (2 Circuits) (Female Terminal Housing (2 Circuits))

Female Lock (2 Circuits) (Female Lock (2 Circuits))

Male Клемма Корпус (6 Circuits) (Male Terminal Housing (6 Circuits))

Заглушка. With DPM (Plug. With DPM)

Заглушка. Without DPM (Plug. Without DPM)

Датчик Жгут проводов. Includes items 50 to 54 (Sensor Harness. Includes items 50 to 54)

Male Клемма (Male Terminal)

Female Клемма (Female Terminal)

Male Lock (2 Circuits) (Male Lock (2 Circuits))

Male Клемма Корпус (2 Circuits) (Male Terminal Housing (2 Circuits))

Low температура Трубопровод (Low Temperature Tubing)

GAINE *TUBING

Female Клемма Корпус (6 Circuits) (Female Terminal Housing (6 Circuits))

Female Lock (6 Circuits) (Female Lock (6 Circuits))
