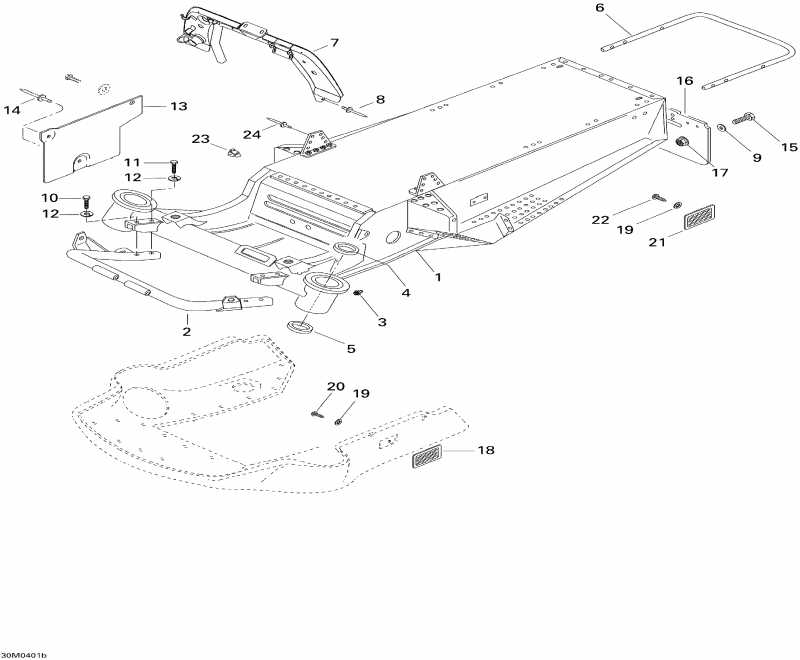

Раздел: Рама | Frame

Рама Ass’y (Frame Ass’y)

Front Бампер (Front Bumper)

PARE-CHOCS AV.S*BUMPER-FRONT W

Смазочный фиттинг (Grease Fitting)

верхний Подушка. (see Front Susp и Ski) (Upper Cushion. (see Front Susp and Ski))

COUSSINET SUP. *CUSHION-UPPER

нижний Подушка. (see Front Susp и Ski) (Lower Cushion. (see Front Susp and Ski))

Rear Бампер. (see Седло и Acc) (Rear Bumper. (see Seat and Acc))

верхний Column Sвышеport (Upper Column Support)

Заклёпка 1 / 4” (Rivet 1/4”)

Шайба (Washer)

Hex. Фланецd Винт M6 X 35 (Hex. Flanged Screw M6 X 35)

SCREW-HEX.M6 X 35

Шестигранный винт M6 x 25 (Hex. Screw M6 x 25)

BOULON *BOLT

Шайба с блокировкой 6 mm (Lock Washer 6 mm)

WASHER-LOCK THIN BLACK DIN.127

Heat Shield (Heat Shield)

Заклёпка (чёрный) (Rivet (Black))

Шестигранный винт M5 x 20 (Hex. Screw M5 x 20)

SCREW-HEX.CAP DIN.933

Snow Guard (Snow Guard)

GARDE-NEIGE *GUARD-SNOW

Elastic Фланецd Гайка M5 (Elastic Flanged Nut M5)

NUT-FLANGE ELASTIC DIN.6926

Amber Reflector (Amber Reflector)

External Tooth Шайба с блокировкой 5 mm (External Tooth Lock Washer 5 mm)

WASHER-LOCK SERRATED DIN.6798A

Phillips Винт M5 x 10 (Phillips Screw M5 x 10)

SCREW-PAN HD.PH.DIN.7985A

красный Reflector (Red Reflector)

Phillips Винт M5 x 8 (Phillips Screw M5 x 8)

SCREW-PAN HD.PH.DIN.7985A

Зажим (Clip)

PINCE *CLIP

Заклёпка 1 / 4” (Rivet 1/4”)
