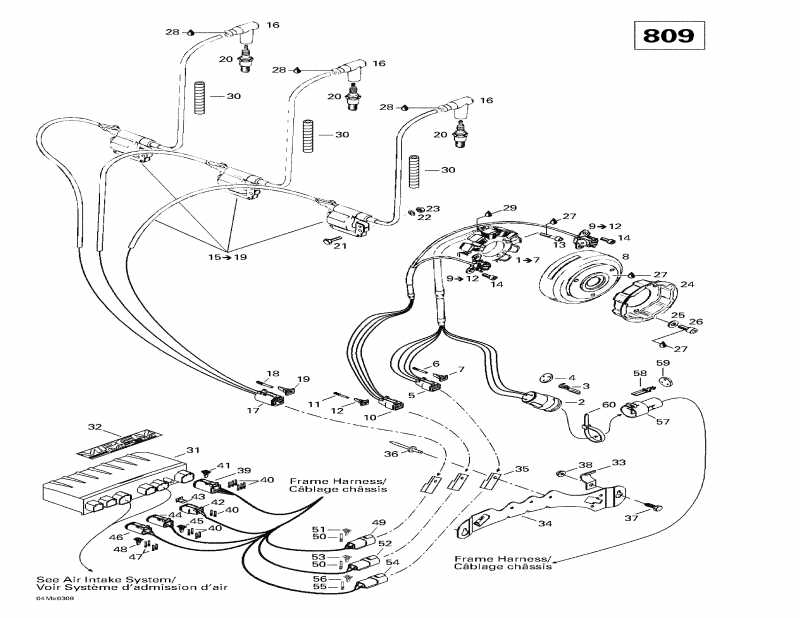

Раздел: Магнето (12v, 290w) | Magneto (12v, 290w)

Статор в сборе. Includes 1 - 7. (Stator Assy. Includes 1 - 7.)

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

Female Клемма (Female Terminal)

Сальник (Seal)

Female Клемма Корпус (4 circuits) (Female Terminal Housing (4 circuits))

Female Клемма (Female Terminal)

Female Lock (4 circuits) (Female Lock (4 circuits))

Магнето Маховик (Magneto Flywheel)

Pick выше в сборе. Includes 9 - 12. (Pick Up Assy. Includes 9 - 12.)

Female Клемма Корпус (4 circuits) (Female Terminal Housing (4 circuits))

Female Клемма (Female Terminal)

Female Lock (4 circuits) (Female Lock (4 circuits))

Цилиндр Винт M6 x 30 (Cylinder Screw M6 x 30)

VIS ALLEN *SCREW-SOCKET

Саморез M6 x 14 (Tapping Screw M6 x 14)

Катушка зажигания. Includes 15 - 19. (Ignition Coil. Includes 15 - 19.)

Spark Защитный колачок (Spark Plug Cap)

PROT.BOUGIE *PROT-SPARK PLU

Female Клемма Корпус (6 circuits) (Female Terminal Housing (6 circuits))

Female Клемма (Female Terminal)

(Female) Secondary Lock (6 Circuits) (Deutsch) ((Female) Secondary Lock (6 Circuits) (Deutsch))

WEDGE-6 WAYS M

Свеча зажигания (NGK BR9-ES) (Spark Plug (NGK BR9-ES))

BOUGIE BR9ES *PLUG-SPARK

Шестигранный винт M6 x 20 (Hex. Screw M6 x 20)

SCREW-HEX.M6 X 20

Шайба с блокировкой 6 mm (Lock Washer 6 mm)

RONDELLE-FREIN *WASHER-LOCK

Hex. Гайка M6 (Hex. Nut M6)

NUT-HEX.M6

Starting Шкив (Starting Pulley)

плоский Шайба (Flat Washer)

Allen Винт M8 x 12 (Allen Screw M8 x 12)

Loctite 243, 10 ml (Loctite 243, 10 ml)

LOCTITE-243

Dielectric Смазка, 150 g (Dielectric Grease, 150 g)

GRAISSE *GREASE

Сальникant Silicone, Clear (Sealant Silicone, Clear)

SCELL.SILICONE *SEAL-SILICONE

Трубопровод (Tubing)

GAINE *PROTECTOR TUBE

Calibration Module (Calibration Module)

Electric Box Наклейка (Electric Box Decal)

Кронштейн (Bracket)

Корпус Sвышеport (Housing Support)

Зажим (Clip)

Pop Заклёпка 3 / 16" (Pop Rivet 3/16")

Шестигранный винт M5 x 14 (Hex. Screw M5 x 14)

SCREW-HEX.CAP DIN.933

Elastic Фланецd Гайка M5 (Elastic Flanged Nut M5)

NUT-FLANGE ELASTIC DIN.6926

Female Клемма Корпус (6 circuits) (Female Terminal Housing (6 circuits))

Female Клемма (Female Terminal)

(Female) Secondary Lock (6 Circuits) (Deutsch) ((Female) Secondary Lock (6 Circuits) (Deutsch))

WEDGE-6 WAYS M

Female Клемма Корпус (2 circuits) (Female Terminal Housing (2 circuits))

Female Lock (2 circuits) (Female Lock (2 circuits))

Female Клемма Корпус (4 circuits) (Female Terminal Housing (4 circuits))

Female Lock (4 circuits) (Female Lock (4 circuits))

Female Клемма Корпус (4 circuits) (Female Terminal Housing (4 circuits))

Female Клемма (Female Terminal)

Female Lock (4 circuits) (Female Lock (4 circuits))

Male Клемма Корпус (6 circuits) (Male Terminal Housing (6 circuits))

Male Клемма (Male Terminal)

(Female) Secondary Lock (6 Circuits) (Deutsch) ((Female) Secondary Lock (6 Circuits) (Deutsch))

Male Клемма Корпус (4 circuits) (Male Terminal Housing (4 circuits))

(Female) Secondary Lock (4 Circuits) (Deutsch) ((Female) Secondary Lock (4 Circuits) (Deutsch))

Male Клемма Корпус (4 circuits) (Male Terminal Housing (4 circuits))

Male Клемма (Male Terminal)

Male Lock (4 circuits) (Male Lock (4 circuits))

Male Клемма Корпус (3 circuits) (Male Terminal Housing (3 circuits))

Male Клемма (Male Terminal)

Сальник (Seal)

Tie Rap 180 mm (Tie Rap 180 mm)

TIE RAP *TIE-RAP
