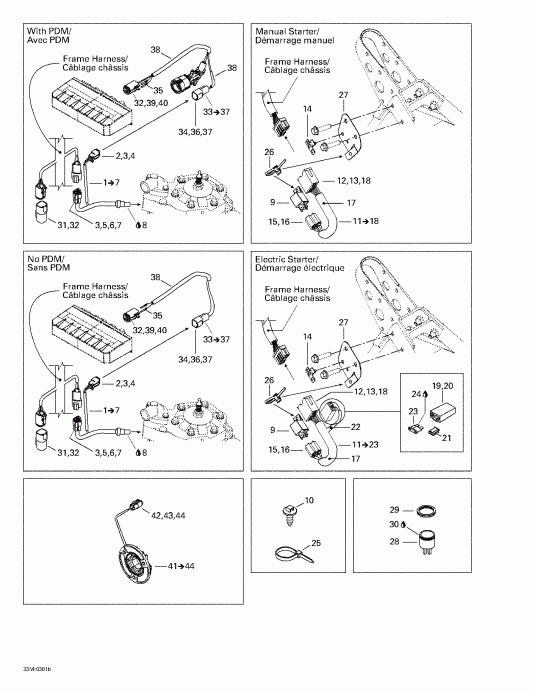

Раздел: Электрика System 2 | Electrical System 2

температура Датчик. Includes 1 - 7. (Temperature sensor. Includes 1 - 7.)

CAPTEUR TEMP. *TEMP. SENSOR

температура Датчик. Includes 1 - 7. (JAMES EDITION) MX Z 600 H.O. (Temperature sensor. Includes 1 - 7. (JAMES EDITION) MX Z 600 H.O.)

Female Клемма Корпус (2 circuits) (Female terminal housing (2 circuits))

Female Клемма (Female terminal)

Female lock (2 circuits) (Female lock (2 circuits))

Female Клемма Корпус (3 circuits) (Female terminal housing (3 circuits))

Female lock (3 circuits) (Female lock (3 circuits))

Заглушка (Plug)

Loctite 592, Трубка Сальникant, 50 ml (Loctite 592, pipe sealant, 50 ml)

ENDUIT ETANCHE *SEALANT-TEFLON

Реле (Relay)

Крепление dart (Mount dart)

DARD D ANCRAGE *DART-MOUNT

Configuration Жгут проводов. Includes 11 - 23. (ELETRIC Стартер) (Configuration harness. Includes 11 - 23. (ELETRIC STARTER))

Configuration Жгут проводов. Includes 11 - 18. (ручной Стартер) (Configuration harness. Includes 11 - 18. (MANUAL STARTER))

CABLAGE CONF. *HARNESS-CONF.

Male Клемма (Male terminal)

Male Клемма (Male terminal)

Корпус sвышеport (Housing support)

Female Клемма Корпус (5 circuits) (Female terminal housing (5 circuits))

Female Клемма (Female terminal)

COSSE FIXATION *TERMINAL-CONN.

Трубопровод (Tubing)

GAINE *HOUSING

Male Клемма Корпус (11 circuits) (Male terminal housing (11 circuits))

Female Клемма (Female terminal)

Предохранитель Держатель (Fuse Holder)

Зажим (Clip)

Корпус (Housing)

GAINE *PROTECTOR TUBE

Предохранитель (5 amperes) (Fuse (5 amperes))

FUSIBLE 5 AMP. *FUSE-5 AMP.

Dielectric Смазка, 150 g (Dielectric Grease, 150 g)

GRAISSE *GREASE

Tie-rap 180 mm (Tie-rap 180 mm)

TIE RAP *TIE-RAP

Tie-rap 160 mm (Tie-rap 160 mm)

Жгут проводов sвышеport (Harness support)

SUPPORT CABLAGE*HARNESS SUPPORT

Horn (RER) (Horn (RER))

AVERTISSEUR *HORN

пластиковый Гайка (RER) (Plastic nut (RER))

Сальникant Silicone, Clear (Sealant Silicone, Clear)

SCELL.SILICONE *SEAL-SILICONE

Female Клемма Корпус (5 circuits) (Female terminal housing (5 circuits))

Сальникing Колпачок (DPM) (Sealing cap (DPM))

Сальникing Колпачок (no DPM) (Sealing cap (no DPM))

Датчик Жгут проводов. Includes 33 - 37. (Sensor harness. Includes 33 - 37.)

Male Клемма (Male terminal)

Femelle Клемма (Femelle terminal)

Male Lock (2 circuits) (Male Lock (2 circuits))

Male Клемма Корпус (2 circuits) (Male terminal housing (2 circuits))

Low температура Трубопровод (Low temperature tubing)

GAINE *TUBING

Male Клемма Корпус (6 circuits) (Male terminal housing (6 circuits))

Male Lock (6 circuits) (Male Lock (6 circuits))

Speed Датчик Фланец. Includes 41 - 44. (Speed sensor flange. Includes 41 - 44.)

CAPTEUR *SENSOR

Female Клемма Корпус (3 circuits) (Female terminal housing (3 circuits))

Female Lock (3 circuits) (Female Lock (3 circuits))

Femelle Клемма (Femelle terminal)
