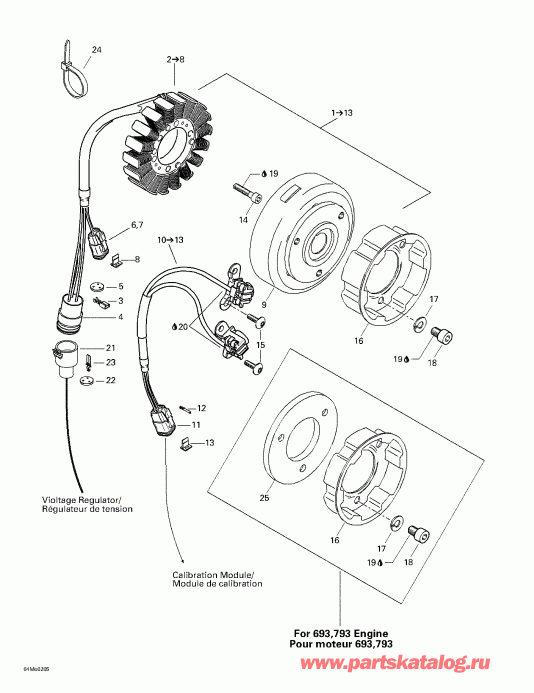

Раздел: Магнето (12v, 290w) | Magneto (12v, 290w)

Магнето в сборе (12V, 290W) Includes 1 - 13. (Magneto Assy (12V, 290W). Includes 1 - 13.)

Статор Пластина в сборе. Includes 2 - 8. (Stator Plate Assy. Includes 2 - 8.)

Female Клемма (Female Terminal)

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

Сальник (Seal)

Female Клемма (Female Terminal)

Female Клемма Корпус (2 circuits) (Female Terminal Housing (2 circuits))

Female Lock (2 circuits) (Female Lock (2 circuits))

Маховик (Flywheel)

Pick-выше в сборе. Includes 10 - 13. (Pick-up Assy. Includes 10 - 13.)

Female Клемма Корпус (4 circuits) (Female Terminal Housing (4 circuits))

Female Клемма (Female Terminal)

Female Lock (4 circuits) (Female Lock (4 circuits))

Socket Head Винт M6 x 30 (Socket Head Screw M6 x 30)

SCREW-ALLEN M6 X 30

Винт M5 x 16 (Screw M5 x 16)

Starting Шкив. Grand TouКольцо 500. Grand TouКольцо 600. (Starting Pulley. Grand Touring 500. Grand Touring 600.)

PULL-STARTING

Starting Шкив. Grand TouКольцо 700. Grand TouКольцо 800. (Starting Pulley. Grand Touring 700. Grand Touring 800.)

PULL-STARTING

     (не оригинальная запчасть) Адаптер стартера BRP SM-11018

Шайба с блокировкой 8 mm (Lock Washer 8 mm)

RONDELLE-FREIN *WASHER-LOCK#8

Socket Head Винт M8 x 12. Grand TouКольцо 500. Grand TouКольцо 600. (Socket Head Screw M8 x 12. Grand Touring 500. Grand Touring 600.)

Шестигранный винт M8 x 20. Grand TouКольцо 700. Grand TouКольцо 800. (Hex. Screw M8 x 20. Grand Touring 700. Grand Touring 800.)

VIS *SCREW

Loctite 243, 10 ml (Loctite 243, 10 ml)

LOCTITE-243

Sikaflex 255, 310 ml (Sikaflex 255, 310 ml)

Male Клемма Корпус (3 circuits) (Male Terminal Housing (3 circuits))

Сальник (3 circuits) (Seal (3 circuits))

Male Клемма (Male Terminal)

Tie Rap 94 mm (Tie Rap 94 mm)

TIE RAP *TIE-RAP

Маховик. Grand TouКольцо 700. Grand TouКольцо 800. (Flywheel. Grand Touring 700. Grand Touring 800.)

CONTREPOIDS *FLYWHEEL
