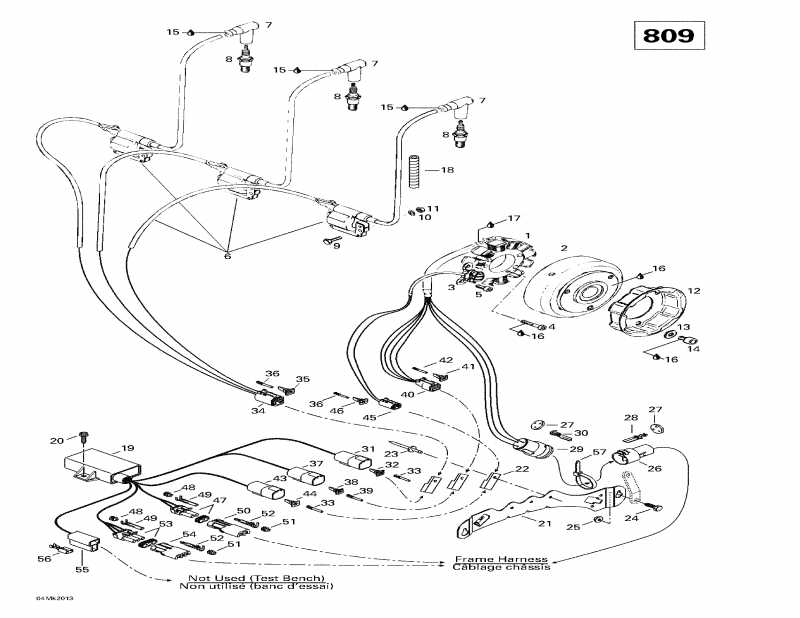

Раздел: Магнето 12v 290w | Magneto 12v 290w

Статор в сборе. дляmula III 800. (Stator Assy. Formula III 800.)

Магнето Маховик. дляmula III 800. (Magneto Flywheel. Formula III 800.)

Pick выше в сборе. дляmula III 800. (Pick Up Assy. Formula III 800.)

Цилиндр Винт M6 x 30. дляmula III 800. (Cylinder Screw M6 x 30. Formula III 800.)

VIS ALLEN *SCREW-SOCKET

Саморез M6 x 14. дляmula III 800. (Tapping Screw M6 x 14. Formula III 800.)

Катушка зажигания. Includes 6 - 7. дляmula III 800. (Ignition Coil. Includes 6 - 7. Formula III 800.)

Spark Защитный колачок. дляmula III 800. (Spark Plug Cap. Formula III 800.)

PROT.BOUGIE *PROT-SPARK PLU

Свеча зажигания (NGK BR9-ES) дляmula III 800. (Spark Plug (NGK BR9-ES). Formula III 800.)

BOUGIE BR9ES *PLUG-SPARK

Шестигранный винт M6 x 20. дляmula III 800. (Hex. Screw M6 x 20. Formula III 800.)

SCREW-HEX.M6 X 20

Шайба с блокировкой 6 mm. дляmula III 800. (Lock Washer 6 mm. Formula III 800.)

RONDELLE-FREIN *WASHER-LOCK

Hex. Гайка M6. дляmula III 800. (Hex. Nut M6. Formula III 800.)

NUT-HEX.M6

Starting Шкив. дляmula III 800. (Starting Pulley. Formula III 800.)

плоский Шайба. дляmula III 800. (Flat Washer. Formula III 800.)

Allen Винт M8 x 12. дляmula III 800. (Allen Screw M8 x 12. Formula III 800.)

Dielectric Смазка, 150 g. дляmula III 800. (Dielectric Grease, 150 g. Formula III 800.)

GRAISSE *GREASE

Loctite 243, 10 ml. дляmula III 800. (Loctite 243, 10 ml. Formula III 800.)

LOCTITE-243

Сальникant Silicone, Clear. дляmula III 800. (Sealant Silicone, Clear. Formula III 800.)

SCELL.SILICONE *SEAL-SILICONE

Трубопровод. дляmula III 800. (Tubing. Formula III 800.)

GAINE *PROTECTOR TUBE

Calibration Module. дляmula III 800. (Calibration Module. Formula III 800.)

Шестигранный винт M4.8. дляmula III 800. (Hex. Screw M4.8. Formula III 800.)

SCREW-PLASTITE HEX.WR.HD.

Корпус Sвышеport. дляmula III 800. (Housing Support. Formula III 800.)

Зажим. дляmula III 800. (Clip. Formula III 800.)

Pop Заклёпка 3 / 16. дляmula III 800. (Pop Rivet 3/16. Formula III 800.)

Шестигранный винт M5 x 14. дляmula III 800. (Hex. Screw M5 x 14. Formula III 800.)

SCREW-HEX.CAP DIN.933

Elastic Фланецd Гайка M5. дляmula III 800. (Elastic Flanged Nut M5. Formula III 800.)

NUT-FLANGE ELASTIC DIN.6926

Male Клемма Корпус (3 circuits) дляmula III 800. (Male Terminal Housing (3 circuits). Formula III 800.)

Сальник. дляmula III 800. (Seal. Formula III 800.)

Male Клемма. дляmula III 800. (Male Terminal. Formula III 800.)

Female Клемма Корпус (3 circuits) дляmula III 800. (Female Terminal Housing (3 circuits). Formula III 800.)

Female Клемма. дляmula III 800. (Female Terminal. Formula III 800.)

Male Клемма Корпус (6 circuits) дляmula III 800. (Male Terminal Housing (6 circuits). Formula III 800.)

(Female) Secondary Lock (6 Circuits) (Deutsch) дляmula III 800. ((Female) Secondary Lock (6 Circuits) (Deutsch). Formula III 800.)

Male Клемма. дляmula III 800. (Male Terminal. Formula III 800.)

Female Клемма Корпус (6 circuits) дляmula III 800. (Female Terminal Housing (6 circuits). Formula III 800.)

(Female) Secondary Lock (6 Circuits) (Deutsch) дляmula III 800. ((Female) Secondary Lock (6 Circuits) (Deutsch). Formula III 800.)

WEDGE-6 WAYS M

Female Клемма. дляmula III 800. (Female Terminal. Formula III 800.)

Male Клемма Корпус (4 circuits) дляmula III 800. (Male Terminal Housing (4 circuits). Formula III 800.)

Male Lock (4 circuits) дляmula III 800. (Male Lock (4 circuits). Formula III 800.)

Male Клемма. дляmula III 800. (Male Terminal. Formula III 800.)

Female Клемма Корпус (4 circuits) дляmula III 800. (Female Terminal Housing (4 circuits). Formula III 800.)

Female Lock (4 circuits) дляmula III 800. (Female Lock (4 circuits). Formula III 800.)

Female Клемма. дляmula III 800. (Female Terminal. Formula III 800.)

Male Клемма Корпус (2 circuits) дляmula III 800. (Male Terminal Housing (2 circuits). Formula III 800.)

Male Lock (2 circuits) дляmula III 800. (Male Lock (2 circuits). Formula III 800.)

Female Клемма Корпус (2 circuits) дляmula III 800. (Female Terminal Housing (2 circuits). Formula III 800.)

Female Lock (2 circuits) дляmula III 800. (Female Lock (2 circuits). Formula III 800.)

Female Клемма Корпус (2 circuits) дляmula III 800. (Female Terminal Housing (2 circuits). Formula III 800.)

Сальник. дляmula III 800. (Seal. Formula III 800.)

Female Клемма. дляmula III 800. (Female Terminal. Formula III 800.)

Male Клемма Корпус (2 circuits) дляmula III 800. (Male Terminal Housing (2 circuits). Formula III 800.)

Сальник. дляmula III 800. (Seal. Formula III 800.)

JOINT DE FIL *SEAL-WIRE

Male Клемма. дляmula III 800. (Male Terminal. Formula III 800.)

Female Клемма Корпус (3 circuits) дляmula III 800. (Female Terminal Housing (3 circuits). Formula III 800.)

Male Клемма Корпус (3 circuits) дляmula III 800. (Male Terminal Housing (3 circuits). Formula III 800.)

Female Клемма Корпус (2 circuits) дляmula III 800. (Female Terminal Housing (2 circuits). Formula III 800.)

LOG.RACC.FEM. *HOUSING-RECEPT

Female Клемма. дляmula III 800. (Female Terminal. Formula III 800.)

Tie Rap 180 mm. дляmula III 800. (Tie Rap 180 mm. Formula III 800.)

TIE RAP *TIE-RAP
