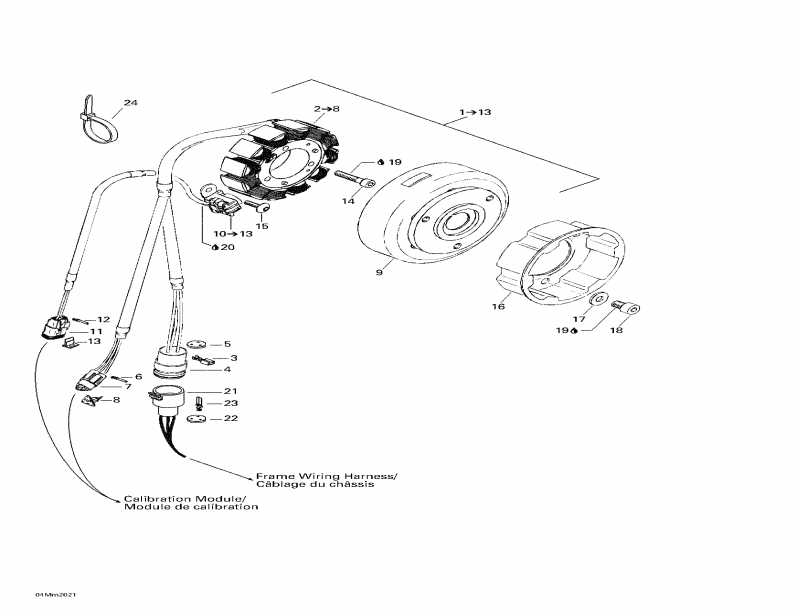

Раздел: Магнето (12v, 290w) | Magneto (12v, 290w)

Магнето в сборе (12V, 290W) Includes 1 - 13. (Magneto Assy (12V, 290W). Includes 1 - 13.)

Статор Пластина в сборе. Includes 2 - 8. (Stator Plate Assy. Includes 2 - 8.)

PLATE-STATOR

     (не оригинальная запчасть) Статор BRP SM-01376

Female Клемма (Female Terminal)

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

Сальник (Seal)

Female Клемма (Female Terminal)

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

LOGEMENT FEMEL.*HOUSING-FEMALE

(Female) Secondary Lock (3 Circuits) (Deutsch) ((Female) Secondary Lock (3 Circuits) (Deutsch))

Маховик (Flywheel)

FLYWHEEL

Pick-выше в сборе. Includes 10 - 13. (Pick-up Assy. Includes 10 - 13.)

CAPTEUR ASS. *PICKUP-ASSY.

Female Клемма Корпус (2 circuits) (Female Terminal Housing (2 circuits))

Female Клемма (Female Terminal)

Female Lock (2 circuits) (Female Lock (2 circuits))

Socket Head Винт M6 x 30 (Socket Head Screw M6 x 30)

SCREW-ALLEN M6 X 30

Винт M5 x 16 (Screw M5 x 16)

Starting Шкив (Starting Pulley)

PULL-STARTING

Шайба с блокировкой 8 mm (Lock Washer 8 mm)

RONDELLE-FREIN *WASHER-LOCK#8

Socket Head Винт M8 x 12 (Socket Head Screw M8 x 12)

Loctite 243, 10 ml (Loctite 243, 10 ml)

LOCTITE-243

Sikaflex 255, 310 ml (Sikaflex 255, 310 ml)

Male Клемма Корпус (3 circuits) (Male Terminal Housing (3 circuits))

Сальник (3 circuits) (Seal (3 circuits))

Male Клемма (Male Terminal)

Tie Rap 94 mm (Tie Rap 94 mm)

TIE RAP *TIE-RAP
