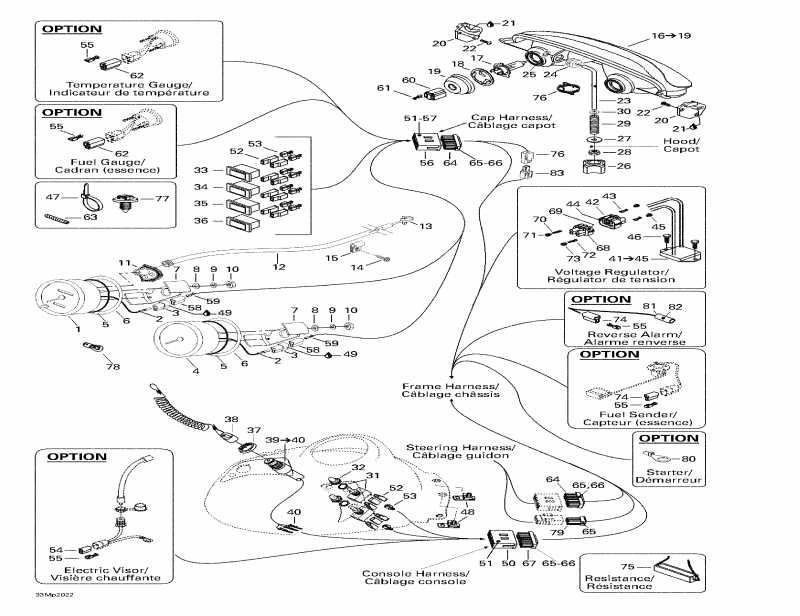

Раздел: Электрика System | Electrical System

Спидометр (MPH) (Speedometer (MPH))

IND.VITESSE *SPEEDOMETER

Male Клемма (14-18 Gauge) (Male Terminal (14-18 Gauge))

COSSE MALE *TERMINAL-MALE

Male Клемма Корпус (2 circuits) (Male Terminal Housing (2 circuits))

LOGEMENT RACCOR*HOUSING-TAB

Тахометр (Tachometer)

COMPTE-TOURS *TACHOMETER

Уплотнительное кольцо (O-Ring)

Шайба (Washer)

Case Держатель (Case Holder)

плоский Шайба (Flat Washer)

WASHER - FLAT

Шайба с блокировкой (Lock Washer)

Гайка (Nut)

Drive Angle (Drive Angle)

Спидометр Кабели (Speedometer Cable)

Спидометр Drive Insert (Speedometer Drive Insert)

Hex. Саморез (Hex. Tapping Screw)

Зажим (Кабели) (Clip (Cable))

BRIDE DE CABLE *CLAMP-CABLE

Halogen Headlamp. Includes 16 - 19. (Halogen Headlamp. Includes 16 - 19.)

PHARE HALOGENE *HEADLAMP-HALO.

Halogen Лампочка 60 / 55 W (Halogen Bulb 60/55 W)

AMPOULE HALOGEN*BULB-HAL.H4

Лампочка Держатель (Bulb Holder)

BULB HOLDER

Защита Колпачок (Protector Cap)

COVER

Headlamp Sвышеport R.H (Headlamp Support R.H)

Headlamp Sвышеport L.H (Headlamp Support L.H)

Смазка Трубка LMZ, 400 g (Grease Tube LMZ, 400 g)

Headlamp Винт (Headlamp Screw)

Регулятор Тяга (Adjuster Rod)

Пыльник (Grommet)

Push Гайка (Push Nut)

NUT-PUSH

Handle (Handle)

MANETTE *HANDLE

Шайба (Washer)

Эластичная гайка со стопором M6 (Elastic Stop Nut M6)

NUT-STOP ELASTIC DIN.985

Пружина (Spring)

плоский Шайба 6 mm (Flat Washer 6 mm)

RONDELLE *WASHER

Переключатель (Heating Рукоятка) (Switch (Heating Grip))

INT.POIG.CHAUF.*SWITCH-GRIP HE

Переключатель Крышка (Switch Cover)

COUV.INTERRUPT.*COVER-SWITCH

Pilot Lamp (Oil Level) (Pilot Lamp (Oil Level))

LAMPE TEMOIN *LAMP-PILOT

Pilot Lamp (Headlamp) (Pilot Lamp (Headlamp))

LAMPE TEMOIN *LAMP-PILOT

Pilot Lamp (температура) (Pilot Lamp (Temperature))

Pilot Lamp (DESS) (Pilot Lamp (DESS))

Аварийный выключатель Гайка (Safety Switch Nut)

ECROU SECURITE *NUT-SAF.SWITCH

DESS Колпачок в сборе (DESS Cap Assy)

CAPUCHON DESS *CAP-DESS.

     (не оригинальная запчасть) Чека безопасности (DESS Cap) BRP SM-01577

     (не оригинальная запчасть) Чека безопасности (DESS Cap) BRP SM-01577-BK

DESS Переключатель. Includes 39 - 40. (DESS Switch. Includes 39 - 40.)

Male Клемма (Male Terminal)

Voltage Регулятор. Includes 41 - 45. (Voltage Regulator. Includes 41 - 45.)

REGU.TENSION *REGULATOR-VOLT

Female Клемма Корпус (4 circuits) (Female Terminal Housing (4 circuits))

Female Клемма (Female Terminal)

Female Lock (Female Lock)

Сальник (Seal)

Hex. дляming Винт M6 x 16 (Hex. Forming Screw M6 x 16)

SCREW-FORMING HEX.HD.FL.GM6174M

Tie Rap 94 mm (Tie Rap 94 mm)

TIE RAP *TIE-RAP

Tie Rap 130 mm (Tie Rap 130 mm)

Tie Rap 160 mm (Tie Rap 160 mm)

Tie Rap 350 mm (Tie Rap 350 mm)

TIE RAP 350MM *TIE RAP 350MM

Tie Rap (Tie Rap)

TIE RAP *TIE-RAP

Tie Rap (Tie Rap)

Корпус Sвышеport (Housing Support)

Dielectric Смазка, 150 g (Dielectric Grease, 150 g)

GRAISSE *GREASE

Male Клемма Корпус (15 circuits) (Male Terminal Housing (15 circuits))

Male Клемма (Male Terminal)

Female Клемма Корпус (1 circuits) (Female Terminal Housing (1 circuits))

Female Клемма (Female Terminal)

Female Клемма Корпус (2 circuits) (Female Terminal Housing (2 circuits))

LOG.RACC.FEM. *HOUSING-RECEPT

Female Клемма (Female Terminal)

COSSE FIXATION *TERMINAL-CONN.

Male Клемма Корпус (13 circuits) (Male Terminal Housing (13 circuits))

Male Клемма (Male Terminal)

Female Клемма Корпус (2 circuits) (Female Terminal Housing (2 circuits))

LOG.RACC.FEM. *HOUSING-RECEPT

Female Клемма (Female Terminal)

COSSE FIXATION *TERMINAL-CONN.

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

Female Клемма (Female Terminal)

COSSE FEMELLE *TERMINAL-FEMAL

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

CONNECTEUR FEM.*CONNECTOR-FEM.

Трубопровод 6 mm (Tubing 6 mm)

GAINE *PROTECTOR TUBE

Трубопровод 10 mm (Tubing 10 mm)

GAINE *PROTECTOR TUBE

Трубопровод 13 mm (Tubing 13 mm)

GAINE *HOUSING

Трубопровод 16 mm (Tubing 16 mm)

PROTECTOR TUBE

Female Клемма Корпус (13 circuits) (Female Terminal Housing (13 circuits))

Female Клемма (Female Terminal)

Female Клемма (Female Terminal)

Female Клемма Корпус (15 circuits) (Female Terminal Housing (15 circuits))

Male Клемма Корпус (4 circuits) (Male Terminal Housing (4 circuits))

Male Lock (4 circuits) (Male Lock (4 circuits))

Male Клемма (Male Terminal)

Сальник (Seal)

JOINT DE FIL *SEAL-WIRE

Male Клемма (Male Terminal)

Сальник (Orange) (Seal (Orange))

Female Клемма Корпус (2 circuits) (Female Terminal Housing (2 circuits))

LOG.RACC.FEM. *HOUSING-RECEPT

Resistance (50 ohms) (Resistance (50 ohms))

RESISTANCE *RES.PW10-30E

Female Клемма Корпус (1 Circuit) (Female Terminal Housing (1 Circuit))

Крепление Dart (Mount Dart)

DARD D ANCRAGE *DART-MOUNT

Instrumentation Лампочка (Instrumentation Bulb)

Female Клемма Корпус (3 Circuits) (Female Terminal Housing (3 Circuits))

Кольцо Клемма (Ring Terminal)

Шланг (Hose)

Клемма для Предохранитель (Terminal For Fuse)

Male Клемма Корпус (1 Circuit) (Male Terminal Housing (1 Circuit))
