Номер на
рисунке | Артикул | Наименование | Кол-во
на складе | Цена |
| 1 | 420887794 | Картер двигателя в сборе. Includes 1 - 7. Skandic Wide Track. Skandic Sвышеer Wide Track. (Crankcase Assy. Includes 1 - 7. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 85000 руб. |
| 1 | 420888493 | CRANKCASE 503 | под заказ | 60200 руб. |
| 2 | 420945752 | Шайба с блокировкой 8 mm. Skandic Wide Track. Skandic Sвышеer Wide Track. (Lock Washer 8 mm. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 118 руб. |
| 2 | 402001600 | RONDELLE-FREIN *WASHER-LOCK#8 | под заказ | 110 руб. |
| 3 | 420841201 | Шестигранный винт M8 x 70. Skandic Wide Track. Skandic Sвышеer Wide Track. (Hex. Screw M8 x 70. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 284 руб. |
| 3 | 420841200 | SCREW-HEX.M8 X 70 | под заказ | 230 руб. |
| 4 | 207084544 | Шестигранный винт M8 x 45. Skandic Wide Track. Skandic Sвышеer Wide Track. (Hex. Screw M8 x 45. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 572 руб. |
| 4 | 702000023 | BOULON *BOLT | под заказ | 450 руб. |
| 5 | 420841566 | Socket Head Винт M8 x 50. Skandic Wide Track. Skandic Sвышеer Wide Track. (Socket Head Screw M8 x 50. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 170 руб. |
| 6 | 420841841 | Socket Head Винт M8 x 65. Skandic Wide Track. Skandic Sвышеer Wide Track. (Socket Head Screw M8 x 65. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 154 руб. |
| 7 | 420860962 | Кабели Crommet. Skandic Wide Track. Skandic Sвышеer Wide Track. (Cable Crommet. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 832 руб. |
| 7 | 420860960 | PASSE-CABLE *GROMMET-CABLE | под заказ | 470 руб. |
| 8 | 512056700 | Шайба с блокировкой. Skandic Wide Track. Skandic Sвышеer Wide Track. (Lock Washer. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 548 руб. |
| 8 | 517168000 | RONDELLE-FREIN *WASHER-LOCK | под заказ | 430 руб. |
| 9 | 228501045 | Эластичная гайка со стопором M10. Skandic Wide Track. Skandic Sвышеer Wide Track. (Elastic Stop Nut M10. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | по запросу |
| 9 | 702000009 | ECROU *NUT | под заказ | по запросу |
| 10 | 420840556 | Шпилька M8 x 173.5. Skandic Wide Track. Skandic Sвышеer Wide Track. (Stud M8 x 173.5. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 1120 руб. |
| 10 | 840555 | VAARNARUUVI M8X173.5 | под заказ | 830 руб. |
| 11 | 420640030 | Шпилька M10. Skandic Wide Track. Skandic Sвышеer Wide Track. (Stud M10. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | по запросу |
| 12 | 414176000 | Кабели Струбцина. Skandic Wide Track. Skandic Sвышеer Wide Track. (Cable Clamp. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 284 руб. |
| 12 | 711853412 | BRIDE DE CABLE *CLAMP-CABLE | под заказ | 230 руб. |
| 13 | 420945751 | Шайба с блокировкой 6 mm. Skandic Wide Track. Skandic Sвышеer Wide Track. (Lock Washer 6 mm. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 138 руб. |
| 13 | 540802026 | RONDELLE-FREIN *WASHER-LOCK | под заказ | 110 руб. |
| 14 | 207161644 | Шестигранный винт M6 x 16. Skandic Wide Track. Skandic Sвышеer Wide Track. (Hex. Screw M6 x 16. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 284 руб. |
| 14 | 420241186 | SCREW-HEX.M6 X 16 | под заказ | 230 руб. |
| 15 | 413702700 | Loctite 515, 50 ml. Skandic Wide Track. Skandic Sвышеer Wide Track. (Loctite 515, 50 ml. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 4170 руб. |
| 15 | 293800015 | Loctite 242, 10 ml. Skandic Wide Track. Skandic Sвышеer Wide Track. (Loctite 242, 10 ml. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | 1680 руб. |
| 15 | 293800060 | LOCTITE 243 *LOCTITE-243 | под заказ | 2150 руб. |
| 17 | 420953310 | Провод Sвышеport. Skandic Wide Track. Skandic Sвышеer Wide Track. (Wire Support. Skandic Wide Track. Skandic Super Wide Track.) | под заказ | по запросу |

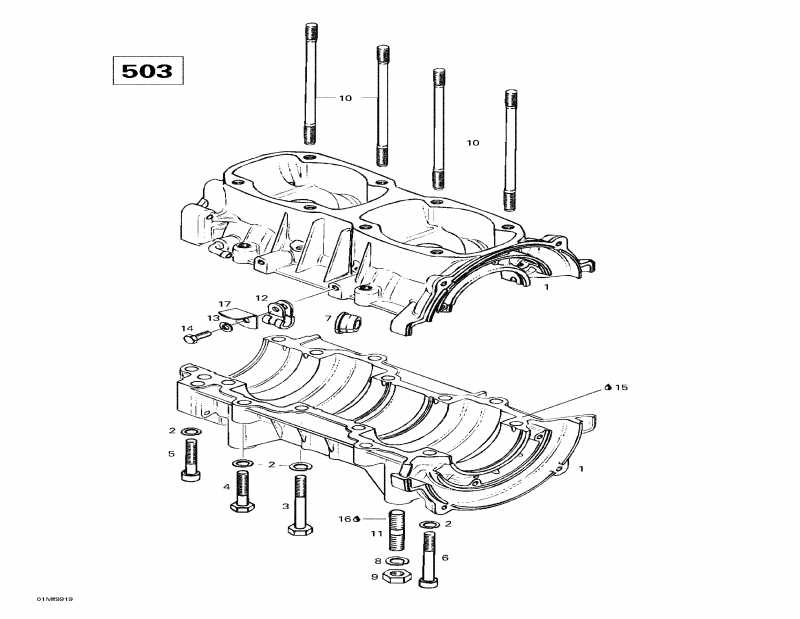

_max_rand7907.jpg "Снегоход SKIDOO модель Skandic Wide Track LC, 1999 - Crankcase (503)")
