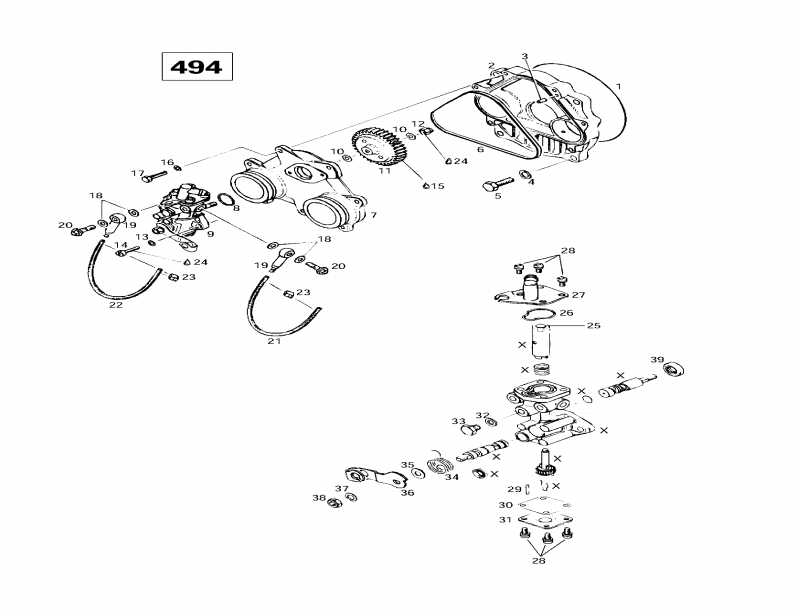

Раздел: Oil Injection System (494) | Oil Injection System (494)

Уплотнительное кольцо. Skandic Wide Track LC. (O-Ring. Skandic Wide Track LC.)

O-RING (USE 420831360)

Rotary Клапан Крышка в сборе Skandic Wide Track LC. (Rotary Valve Cover Assy. Skandic Wide Track LC.)

Шпонка. Skandic Wide Track LC. (Dowel Pin. Skandic Wide Track LC.)

DRIVE PIN

Шайба с блокировкой 8 mm. Skandic Wide Track LC. (Lock Washer 8 mm. Skandic Wide Track LC.)

RONDELLE-FREIN *WASHER-LOCK#8

Шестигранный винт M8 x 20. Skandic Wide Track LC. (Hex. Screw M8 x 20. Skandic Wide Track LC.)

SCREW-HEX.CAP DIN.933

Rubber Кольцо. Skandic Wide Track LC. (Rubber Ring. Skandic Wide Track LC.)

RUBBER RING (USE 420831700)

Масляный насос Креплениеing Фланец. Skandic Wide Track LC. (Oil Pump Mounting Flange. Skandic Wide Track LC.)

PUMP MOUNTING FLANGE

Уплотнительное кольцо. Skandic Wide Track LC. (O-Ring. Skandic Wide Track LC.)

JOINT TORIQUE *O-RING

Масляный насос в сборе. (Incl. It. 25-39) Skandic Wide Track LC. (Oil Pump Assy. (Incl. It. 25-39) Skandic Wide Track LC.)

Шайба 6.2 mm. Skandic Wide Track LC. (Washer 6.2 mm. Skandic Wide Track LC.)

WASHER (USE 420927945)

Масляный насос Шестерня 44 Teeth. Skandic Wide Track LC. (Oil Pump Gear 44 Teeth. Skandic Wide Track LC.)

GEAR (USE 420935940)

Стопорная гайка M6. Skandic Wide Track LC. (Lock Nut M6. Skandic Wide Track LC.)

NUT-STOP ELASTIC DIN.985

Шайба с блокировкой 5 mm. Skandic Wide Track LC. (Lock Washer 5 mm. Skandic Wide Track LC.)

RONDELLE-FREIN *WASHER-LOCK

Cylindrical Slotted Винт M5 x 16. Skandic Wide Track LC. (Cylindrical Slotted Screw M5 x 16. Skandic Wide Track LC.)

Molykote 111. Skandic Wide Track LC. (Molykote 111. Skandic Wide Track LC.)

MOLYKOTE 111 *MOLYKOTE-111

Шайба с блокировкой 6 mm. Skandic Wide Track LC. (Lock Washer 6 mm. Skandic Wide Track LC.)

RONDELLE-FREIN *WASHER-LOCK

Шестигранный винт M6 x 20. Skandic Wide Track LC. (Hex. Screw M6 x 20. Skandic Wide Track LC.)

VIS *SCREW

Oil Banjo Прокладка. Skandic Wide Track LC. (Oil Banjo Gasket. Skandic Wide Track LC.)

RONDELLE ETANCH*WASHER-SEAL

Клапан в сборе. Skandic Wide Track LC. (Valve Assy. Skandic Wide Track LC.)

MALE TERMINAL ASSY (USE 420956010)

Banjo Болт M6 x 16. Skandic Wide Track LC. (Banjo Bolt M6 x 16. Skandic Wide Track LC.)

BOULON BANJO *BOLT-BANJO

Oil Line (MAG Side) Skandic Wide Track LC. (Oil Line (MAG Side). Skandic Wide Track LC.)

TUYAU AERATION *TUBE-AIR VENT

Oil Line (PTO Side) Skandic Wide Track LC. (Oil Line (PTO Side). Skandic Wide Track LC.)

TUYAU AERATION *TUBE-AIR VENT

Струбцина. Skandic Wide Track LC. (Clamp. Skandic Wide Track LC.)

CLAMP (USE 420853840)

Loctite 242, 10cc. Skandic Wide Track LC. (Loctite 242, 10cc. Skandic Wide Track LC.)

LOCTITE 243 *LOCTITE-243

Стопор. Skandic Wide Track LC. (Stopper. Skandic Wide Track LC.)

Уплотнительное кольцо. Skandic Wide Track LC. (O-Ring. Skandic Wide Track LC.)

JOINT TORIQUE *O-RING

Пластина. Skandic Wide Track LC. (Plate. Skandic Wide Track LC.)

Винт M4 x 8. Skandic Wide Track LC. (Screw M4 x 8. Skandic Wide Track LC.)

VIS & RONDELLE *SCREW-& WASHER

Штифт. Skandic Wide Track LC. (Pin. Skandic Wide Track LC.)

Прокладка. Skandic Wide Track LC. (Gasket. Skandic Wide Track LC.)

Пластина-Casing. Skandic Wide Track LC. (Plate-Casing. Skandic Wide Track LC.)

Сальникing Кольцо. Skandic Wide Track LC. (Sealing Ring. Skandic Wide Track LC.)

RONDELLE ETANC.*WASHER-SEAL

Шестигранный винт M6 x 8. Skandic Wide Track LC. (Hex. Screw M6 x 8. Skandic Wide Track LC.)

Release Пружина. Skandic Wide Track LC. (Release Spring. Skandic Wide Track LC.)

Шайба. Skandic Wide Track LC. (Washer. Skandic Wide Track LC.)

Контрольный рычаг. Skandic Wide Track LC. (Control Lever. Skandic Wide Track LC.)

LEVIER CONTROLE*LEVER-CONTROL

Шайба с блокировкой 6 mm. Skandic Wide Track LC. (Lock Washer 6 mm. Skandic Wide Track LC.)

RONDELLE-FREIN *WASHER-LOCK

Гайка M6. Skandic Wide Track LC. (Nut M6. Skandic Wide Track LC.)

NUT-HEX.M6

Сальник. Skandic Wide Track LC. (Oil Seal. Skandic Wide Track LC.)

ANNEAU ETANCHE *SEAL-OIL
