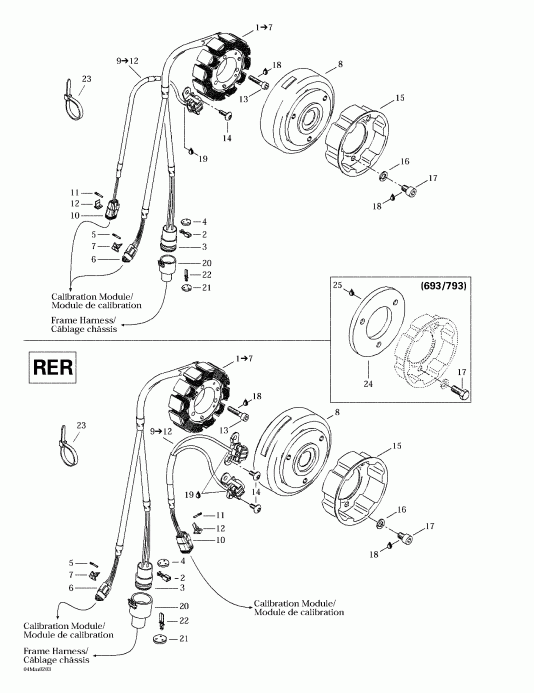

Раздел: Магнето (12v, 290w) | Magneto (12v, 290w)

Статор Пластина. Includes 1 - 7. (Stator Plate. Includes 1 - 7.)

PLAQUE REACTEUR*PLATE-STATOR

     (не оригинальная запчасть) Статор BRP SM-01376

Female Клемма (Female Terminal)

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

Сальник (Seal)

Female Клемма (Female Terminal)

Female Клемма Корпус (3 circuits) (Female Terminal Housing (3 circuits))

LOGEMENT FEMEL.*HOUSING-FEMALE

(Female) Secondary Lock (3 Circuits) (Deutsch) ((Female) Secondary Lock (3 Circuits) (Deutsch))

Маховик (Flywheel)

VOLANT MOTEUR *FLYWHEEL

Маховик (RER) (Flywheel (RER))

Pick-выше в сборе. Includes 9 - 12. (Pick-up Assy. Includes 9 - 12.)

Pick-выше в сборе (RER) (Pick-up Assy (RER))

Female Клемма Корпус. (2 circuits) (Female Terminal Housing. (2 circuits))

Female Клемма Корпус. (4 circuits) (RER) (Female Terminal Housing. (4 circuits) (RER))

Female Клемма (Female Terminal)

Female Клемма (RER) (Female Terminal (RER))

Female Lock (2 circuits) (Female Lock (2 circuits))

Female Lock (4 circuits) (RER) (Female Lock (4 circuits) (RER))

Socket Head Винт M6 x 30 (Socket Head Screw M6 x 30)

SCREW-ALLEN M6 X 30

Винт M5 x 16 (Screw M5 x 16)

Винт M5 x 16 (RER) (Screw M5 x 16 (RER))

Шкив Starting. Summit 600. (Pulley Starting. Summit 600.)

PULL-STARTING

Шкив Starting. Summit 700. Summit 800. (Pulley Starting. Summit 700. Summit 800.)

PULL-STARTING

     (не оригинальная запчасть) Адаптер стартера BRP SM-11018

Шайба с блокировкой 8 mm (Lock Washer 8 mm)

RONDELLE-FREIN *WASHER-LOCK#8

Socket Head Винт M8 x 12. Summit 600. (Socket Head Screw M8 x 12. Summit 600.)

Шестигранный винт M8 x 20. Summit 700. Summit 800. (Hex. Screw M8 x 20. Summit 700. Summit 800.)

VIS *SCREW

Loctite 243, 10 ml (Loctite 243, 10 ml)

LOCTITE-243

Sikaflex 255, 310 ml (Sikaflex 255, 310 ml)

Male Клемма Корпус (3 circuits) (Male Terminal Housing (3 circuits))

Сальник (3 circuits) (Seal (3 circuits))

Male Клемма (Male Terminal)

Tie Rap 94 mm (Tie Rap 94 mm)

TIE RAP *TIE-RAP

Counter Weight. Summit 700. Summit 800. (Counter Weight. Summit 700. Summit 800.)

CONTREPOIDS *FLYWHEEL

Loctite 648, 10 ml. Summit 700. Summit 800. (Loctite 648, 10 ml. Summit 700. Summit 800.)

LOCTITE 642 *LOCTITE-642
